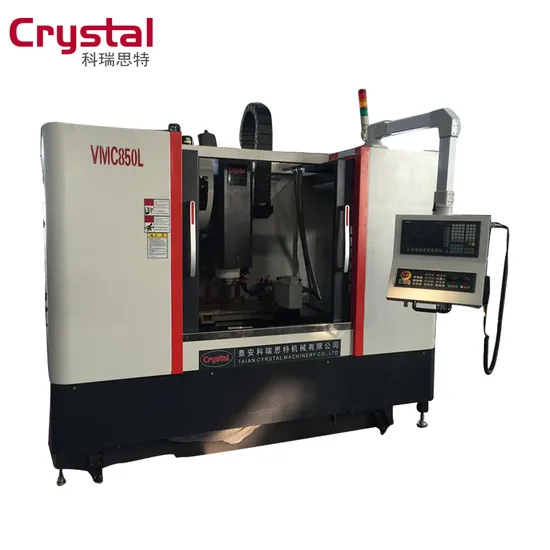

| Specifications | VMC850 |
| workbench specification | 1050*500mm |
| workbench maximum load | 600kg |
| X/Y/Z axis coordinate schedule | 800×500×550 |
| Distance between spindle center and column guide surface | 550mm |
| Distance between spindle end face and worktable surface | 105-655mm |
| X/Y/Z largest feed speed | 10000 mm/min |
| X/Y/Z largest fast moving speed | 20/20/15 m/min |
| The spindle maximum speed | 8000rpm |
| The spindle taper hole | BT40 |
| Spindle motor | 7.5/11 Kw |
| X/Y/Z axis servo motor | 2.0/2.0/2.0 |
| X/Y/Z motor connection | Direct acting |
| X/Y/Z guide rail form | X/Y/Z sliding rail |
| The workbench T slot | 5-18×90 mm |
| Positioning accuracy | ±0.005/300mm |
| Repeat positoning accuracy | ±0.004mm |
| Tool storage form | Turntable Style Tool Magazine/ disc type tool magazine |
| Capacity of tool storage | 16 turntable Style Tool Magazine/24 disc type tool magazine |
| Maximum tool weight | 8kg |
| The biggest tool length | 250/350mm |
| Electric capacity | 11 KVA |
| Machine size (L×W×H) | 2760*2250*2700mm |
| weight | 6000kg |
