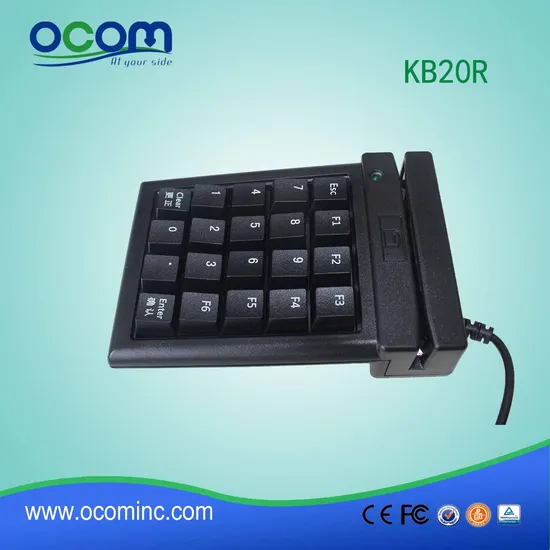

20keys Pinpad with Msr Card Reader USB Numeric Keyboard

Product Description

Magnetic Stripe Reader
With 20 keys pinpad
Bi-directional Read

USER MANUAL
FEATURES
1. Triple tracks.
2. Built-in decoder
3.20 keys pinpad
4. Bi-directional operation
5. Dual color LED to indicate a Good/Bad reading
6. Stainless steel card guide
7. ABS plastic cast case
8. USB Interface cables include.
SPECIFICATIONS
Mechanical:
Weight 450G
Dimensions 150mmL x 101mmW x 38mmH
Case ABS plastic
Environmental:
Operating Temperature 0 to +50 deg C
Storage Temperature -20 to +70 deg C
Relative Humidity 90%, non-condensing
Vibration 40 G's
Shock 40 G's
Reading Performance:
Card feed speed 10 to 120 mm/second
Card feed force 0.6oz, typical
Magnetic head life 1,000,000 passes min.
Read error rate < 1 in 1000 passes
Electrical:
Voltage 5VDC +/- 10%
Current 30 ma
LED indicator Green - Good read or ready to read
Red - Bad read
Electrical Connections:
Connect the long cable to the computer USB port.
Interface:
The KB20R (which Simulation of keypad working) communicate with system through the usb interface.
FUNCTIONAL TEST
KB20R
1. Test msr
To functionally test the KB20R will require the use of a standard credit
card. Place the credit card at one end of the Magnetic Stripe Reader.
Face the magnetic strip of the credit card toward the arrow of the MSR.
Move (swipe) the card through the reader. The KB20R is a bi-directional
device, therefore, it does not matter which direction the credit card is swiped.
The credit card information will appear on the monitor. The information
shown on the screen will vary according to the card used. The information
should look similar to the following:
Track 1 %ABCD84045453?
Track 2 ;9437577710640473475?
Track 3 +43623562346655423465?
2. Test pinpad
The information entered from pinpad will be shown on the screen.
KB20R
1. Test MSR
To functionally test the KB20R will require the use of a standard
credit card and a communications utility program.
magnetic strip of the credit card toward the arrow of the MSR. Move
(swipe) the card through the reader. The KB20R is a bi-directional
device, therefore, it does not matter which direction the credit card is
swiped. The credit card information will appear on the monitor. The
information shown on the screen will vary according to the card used.
The information should look similar to the following:
Track 1 ;9437577710640473475?
Track 2 ;9437577710640473475?
Track 3 +43623562346655423465?
2 .test pinpad
The information entered from pinpad will be shown on the screen
PINPAD
PATTERN

ESC	F1	F2	F3
7	8	9	F4
4	5	6	F5
1	2	3	F6
CLEAR	0	.	ENTER

1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.
3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by szocomtech.en.made-in-china.com.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
Why You Choose OCOM?
Leading One-Stop Supplier for POS and Auto-ID Related Products;
11 Years OEM/ODM Experience;
Qualified by Global Fortune 500 Companies;
Tier 1 customers including Unilever, O2, Star ...
2300+ Customers Cover 159 Countries;
Top 1 Level Trade Assurance upto 399,000.00usd 100% protect your money;
ISO9001, FCC, CE , Rohs, Soncap, POA, BIS Certificates ;
12+1 months warranty;
Shortlisted in "China Best Employer";
Belief: Integrity Based, Strive for Excellence, Win-win Cooperation.
