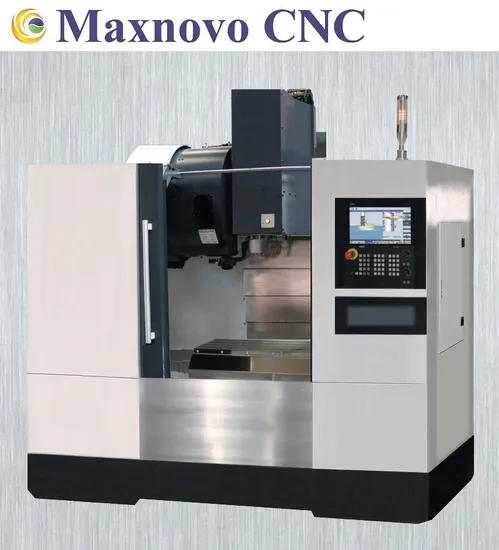

High Precision CNC Milling Machine Vector 855 Vertical Machining Center

Product Description

MM-VECTOR 855 VMC - High Precision CNC Vertical Milling Machining Center - MAXNOVO MACHINE
This kind of MM-VECTOR 855 is the High Precision all-in-one CNC Vertical Machining Center with Advanced Roller Guide-ways and FANUC Oi-MF Plus Control System for Powerful Machining which is been made in ISO9001 factory with CE Safety Certification. Such Versatile CNC Machining Center is ideal for Complex Manufacturing Challenges.
Product Description

High Precision CNC Vertical Machining Center with Advanced Roller Guides and FANUC Control System for Super Reliability
Main Feature :
Excellent Precision, Solid Design, Effectiveness and Efficiency
-Rigid Working Table 1000 X 550 mm with Maximum Load Capacity 600 KS
-Roller Type Linear Guides on all 3 axis (X/Y/Z-axes) to ensure High Accuracy
-Disc Type Automatic Tool Changer with Double-Arm and 24 Tool Stations
-One development goal is to achieve Space-saving and Compact Design
-Optimized Machine Frame Design using FEM Analysis
-High-torque Servo-Drives mounted directly on all Ball Screws on Three Axes for dynamics feed
-Robust Machine Structure with Extra Deep Center of Gravity and Small Footprint
-Powerful BT40 Spindle with Continuous Speeds up to 8000 RPM
-Torsion Free Machine Base Thanks to Strong Ribbing
-Heavy Duty Version
-High Productivity
-High Reliability
-High Customization and Automation Possibilities
-All-in-One CNC Vertical Machining Center for Powerful Machining
-Automatic Central Lubrication System
-High Precision Original NSK Bearings ensures Longer Working Life
-Precision-ground, Preloaded High-Performance Big Pitch C3 Ball Screws on all Three Axes
-Spindle Speed 12000 RPM is Optional
-Siemens SINUMERIK CNC Control System is Optional
-High Precision 4th-Axis Rotary Table is Optional
-Chain Type Chip Conveyor is Optional
-Industrial Robot Automation is Optional
-Certificate of Original (CO, FORM A, FORM E, FORM F)
Product Parameters

Technical Data :

Product Name :	High Precision CNC Vertical Machining Center
Product Item :	MM-VECTOR 855
Guide-way Type :	Roller Type Linear Guides for all 3 axes
Control System :	FANUC Oi-MF Plus 5
Machine Data
Table Size :	1000 X 550 mm
Table Load Capacity :	600 KGS
Spindle Speed :	8000 RPM
Spindle Drive Method :	Belt Drive
Distance from Spindle nose-to-table surface :	120 - 670 mm
Distance from Spindle center to column surface :	595 mm
Spindle Taper :	BT40
T-slots (number /width /distance) :	5 piece X 18 mm X 90 mm
Travels
X-axis Travel :	800 mm
Y-axis Travel :	550 mm
Z-axis Travel :	550 mm
Feed
Rapid Feed (X-/Y-/Z-axis) :	42000 /42000 /42000 mm /min
Cutting Feed (X-/Y-/Z-axis) :	10000 /10000 /10000 mm /min
Tool Changer
Tool Changer Type :	Disc Type ATC (double arm grab)
Number of Tool Stations :	24 Tools
Max. Tool Diameter X Tool Length (Max.) :	Ø 80 mm X 300 mm
Max. Tool Weight :	8 KGS
Tool Change Time (tool-to-tool) :	1.8 seconds
Precision
Positioning Accuracy :	± 0.005 mm
Repeat Accuracy :	± 0.003 mm
Drive Capacity
Main Motor :	11 /15 KW
Gross Weight :	5680 KGS
Packing Size :	2700 X 2230 X 2450 mm
Standard Accessory :	FANUC Oi-MF Plus (5) CNC Control System, Roller Type Linear Guides for all three axes (X/Y/Z), 24-station Automatic Tool Changer, Coolant system, Electronic Hand-wheel, Lubrication System, Machine Lamp, Tools and Tool-Box

High Precision CNC Vertical Machining Center for Demanding User .

Guarantee of Excellent Quality

The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production The MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.

FAQ :
1. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.
2. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.

3. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 -- 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.

---
