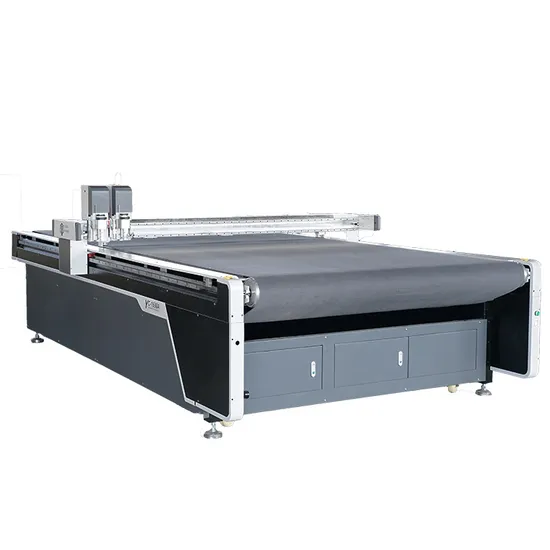

New Design Yc1625 CNC Circular Knife Non-Woven Fabric Carpet Curtain Jacket Leather Cutting Machine

Product Description

Yuchen focus on the research and development of CNC fabric cutting machine more than 10 years,widely popular because of its long service life, complete functions, and simple operation
Brand: Yuchon
Model: YC-1625A (size can be customized)
Work Size: 1600*2500mm
Applicable cutting materials: knitted material,fur, PU leather, jean,canvas,artificial leather,blend fabrics,Cotton & Linen, etc
Functions: cutting, drawing and punching.
cutting tool: driven Rotary cutting tool
Product Parameters

Model	YC-1625L YC-1625A	YC-1630L YC-1630A	YC-1830L YC-1830A	Other sizes are customizable
Working area	2500×1600mm	3000×1600mm	3000×1800mm
Operation properties	Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device	Infrared blocking device,Emergency stop button switch, Intelligent anti-collision device. sensitive response; safe and reliable
Max. cutting speed	1200mm/s
No-load speed	1500mm/s
Multifunctional head cutting tools	Oscillating knife cutting tool, Driven rotary cutting tool,Pneumatic cutting tool, Milling tool, Kiss cutting tool,V-cutting tool, Creasing wheel, Punching tool, Drawing pen etc.
Cutting thickness	0.1-20mm ; 0.1-60mm0.1-20mm (subject to material) ; 0.1-60mm(Optional)
Cutting accuracy	±0.1mm
Transmission interface	Ethernet
Transmission system	Panasonic Servo Motor/SMTYCC Linear rail and rack
Fixed mode	Vacuum absorb
Supply voltage	AC 220V 380V±10%,50HZ
Rated power	11KW or others

After Sales Service
FAQ
1.payment terms:
L/C,Western Union,T/T,Paypal
2.Delivery time:
Standard machine:7-15 days
Customized machine:10-25 days
3.Packing:
plastic film inside and plywood case for outside packing
4.Transportation fee
Ship by sea or airplane, railway. Actual cost reimbursement
5.instal
We offer video teaching,and we have professional technicians who will help you to install, guide and train
6.After sales service
1).3 year free warranty
2).Life time free maintenance service.
3).24 hours online service, free technical support with different languages.
4).Door to door technical support when needed

---
