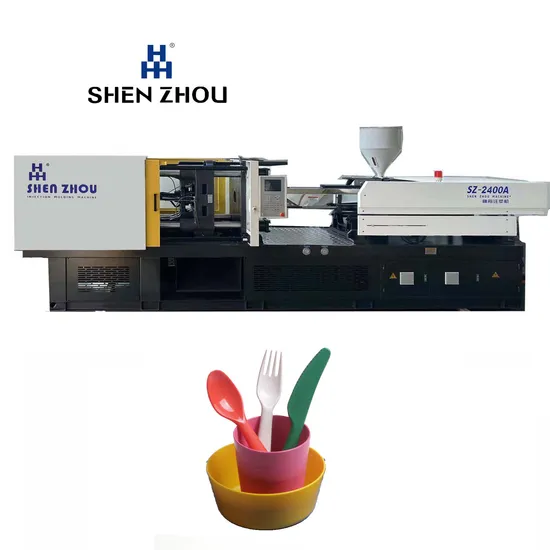

High Quality Automatic Spoon Knife Plastic Injection Molding Machine Price

Product Description

Screw diameter	mm	55	60	65
Screw L/D ratio	L/D	22.9	21	19.4
Shot weight	gram	605	720	845
Injection capacity	cm3	665	791	929
Injection pressure	Mpa	210	176	150
Theoretical injection rate	g/s	176.5	210	245
Plastic capacity	g/s	26.4	32.5	40
Injection stroke	mm	280
Screw torque	N.m	2000
Max screw rotate speed	r/min	150
Clamping force	Ton	240
Opening stroke	mm	530
Space between tie bars	mm	555×555
Mould height	mm	200~570
Max daylight	mm	1100
Ejector force	ton	61.5
Ejector stroke	mm	135
Ejector quantity		9
Oil pump motor	kw	30
Pump pressure	Mpa	16
Heating power	kw	22
Machine size	M	6.2*1.6*2.1
Machine weight	ton	8
Oil tank capacity	L	440
International designation		2400-1390

Q1: All of your products are made by yourself or purchasing the others?
We have independent technical team who focus on making machines, all the products
are made by our technical team.
Q2: What is the ability of your factory?
About injection molding machine, we could produce 50 sets machines per month.
about blow molding machine, we could produce 30sets machine per month
Q3: Do you have any technical supports about your products?
We have had long term collaboration with our partners worldwide, and we have a lot
of cooperation with a lot hef advanced manufacture company on the world.
Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual and warranty card.
In addition, we can provide electronic version of the English manual.
Q5: Do you have an aftermarket warranty for your products?
Warranty: General one year for whole injection molding machines.
General one year for other types of whole machines.
All customers that have bought SHENZHOU injection molding machines would be provided with a lifetime repair service of the machines.
Q6: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller's engineers, and engineer cost USD 80.00 per day.

---
