Factory Sale Disc Harrow 1bts Series of Hinge Offset Disc Harrow / Middle-Duty Disc Harrow

Product Description

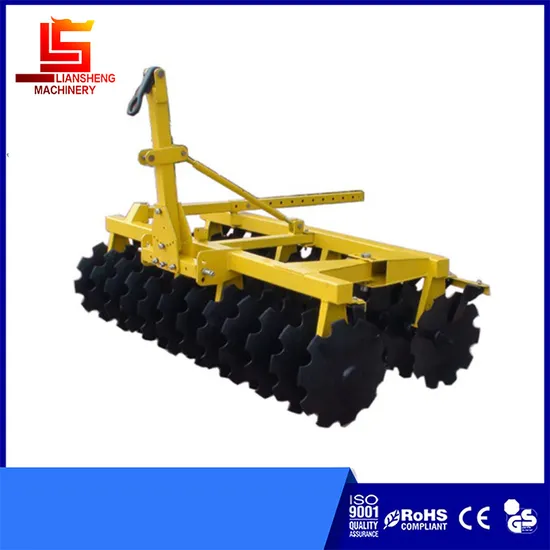

1BTS Series of Hinge Offset Disc Harrow/Middle-Duty Disc Harrow
This series of disc harrows is designed and manufactured according to the requirements of foreign customers.
It is matched with four-wheel tractors and can be mounted or trailed with tractor in you different need .
It has high operating efficiency, reasonable power utilization, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing.
It has strong adaptability to the sticky soil, wasteland and lots of weeds.
It is fitted for four-wheel tractor of 30-120hp.
The disc blades and notch blades are available to meet different customer needs.
The offset angle can be adjusted to adjust the working depth to meet the requirements of different land

Model	Unit	1BTS-6-6	1BTS-7-7	1BTS-8-8	1BTS-9-9	1BTS-10-10	1BTS-11-11	1BTS-12-12
Frame		Square pipe box frame
Type of disc		Notched (front ),plain (rear)
Working width	mm	1400	1600	1800	2000	2300	2500	2700
Working depth	mm	150	150	150	150	150	150	150
Q'ty of disc		12	14	16	18	20	22	24
Disc diameter	mm	560	560	560	560	560	560	560
Total weight	kg	450	500	570	620	680	730	800
Matched power	hp	30	40	50-60	60-70	70-80	80-100	90-120

FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: For the machine spare parts we can offer the sample for free charge but do not pay the cost of freight.
For the whole machines we can accept to order one piece as the sample, price acoording to the actual cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance and balance before shippment.
If you have another question, pls feel free to contact us as below:
Contact: Wendy

Web:https://lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China

---
