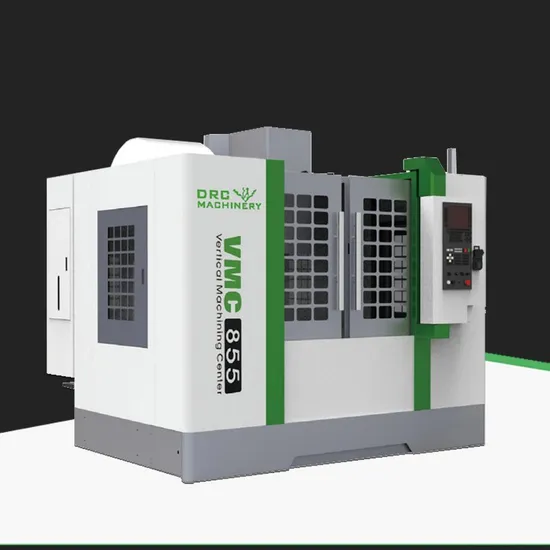

Taiwan Hiwin Guide Rail CNC Machining Center Vmc850 Vmc855 CNC Milling Machine Center

Product Description

Milling cnc vertical machining center VMC850 cnc milling machine

3 Axis vertical metal Milling Machine Type	unit	VMC855(FANUC-Oi MF)
VMC Center Worktable
worktable(length×width )	mm	1000×500
Maximum load of table	kg	700
T-slot(number of slot×slot×pitch)	mm	5-18×80
Triaxial itinerary
Travel forX/Y/Z axes	mm	850/550/600
Distance from spindle nose to table surface	mm	100-650
Distance spindle center to column guide surface	mm	620
Feed system
CNC system		FANUC-Oi MF (1) α
Rapid shift of axes of X/Y/Z		36/36/16
X/Y/Z axis motor		βis12/βis12/βis22B
Spindle motor		βiI12
Automatic tool transform system (CNC milling without)
Standard tool quantity		Disc type 24
The larges diamter cutter knife/length	mm	Φ80 full tool/300
Toolexchaing manner		pneumatic
Average tool exchanging time	sec	Disc type2.5s
Precision
Positioning accuracy	mm	0.008
Accuracy of repeated positioning	mm	0.005
Spindle system
Spindle speed	r.p.m	8000
Spindle specifications		BT40/190
(Drive manner of spindle)		Belt drive
(Motor power of spindle)	kW	11/15
Air pressure
Requirement for air compressing	kg/cm2	≥6
Air pressure flux	L/min	280
Machine specifications
Integrated weight(kg)	kg	6500
Overall dimension (length×width×height)	mm	2700×2300×3040

High Precision Milling Machine Machining Center Vmc850 Vmc855 4 Axis/5 Axis Cnc Milling Machine Center Price
Machining Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional
Metal Vertical Machining Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

---
