Dual Band Gigabit Portable WiFi Router CPE Chipset Mt7981 Mini WiFi6 5.8g Wireless Router

Product Description

Product Description

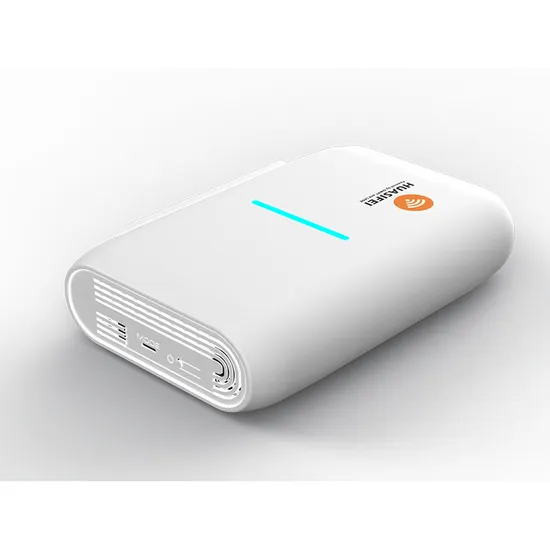

AX3000 is a portable router using Wi-Fi 6 protocol. It is powered by MT7981B 1.3GHz dual-core processor with 160MHz support, which provides excellent improvement in wireless rate and signal strength. It can be used for multi-device connectivity in the home, and the portable and compact design also meets the needs of optimized network for travel. Featuring advanced WiFi 6 technology, Beamforming to enhance coverage and BSS Coloring to reduce network congestion, 160MHz doubles the bandwidth channel compared to 80MHz for faster network speeds and a greater number of device connections. The AX3000's Wi-Fi 6 speeds allow families to watch 4K video on multiple devices with ease and without data buffering interruptions. Hardware Description MT7981B main chip, main frequency up to 1.3GHZ; equipped with independent MT7976CN WIFI6 chip, 2.5G network port RTL8221B chip High-speed 1G DDR4, 8GB EMMC; 1LAN 2500 Mbps+1WAN 1000 Mbps adaptive network port; Support "one key flash mode", long press reset button to enter recovery mode; Support Type-C power interface Support USB3.0 interface specifications

WH3000 Hardware Specifications
Hardware Specifications	MT7981B+MT7976CN+RTL8221B Dual Core 1.3GHZ DDR4 1GB 8GB EMMC (Optional 128G)
WIFI Chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards	IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate	574Mbps (2.4GHz)+2402Mbps (5GHz)
Operating Frequency Bands	2.4GHz 5.8GHz
output power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm
receiver sensitivity	11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm
antennae	2* Built-in Wi-Fi antenna
interface	1*10/100/1000/2500Mbps LAN Port, Auto MDI/MDIX. 1*10/100/1000Mbps WAN Port, Auto MDI/MDIX. 1*USB 3.0 Interface 1*Type-C power connector 1*Reset button 1*VPN button
LED Lights	WIFI
Pushbuttons	1* Reset button
Power Adapter	Type-C, 5V/3A
Maximum Power Consumption	< 8W

Detailed Photos
Company Profile
HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G/5G wifi router. HUASIFEI also is a wifi coverage sloutions provider, provides the solution for hotel, school,hospital,enterprise,vehicle field etc. with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries and regions.

Packaging & Shipping
FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.Q3. Do you have any MOQ limit?A: Low MOQ, 1pc for sample checking is available.Q4. Do your products meet our standards?A: Yes, almost all our products have CE,ROHS,FCC,etc.Q5. How to proceed an order?A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or oursuggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.Q6. How do you ship the goods and how long does it take to arrive?A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 daysto arrive. Airline and sea shipping also optional.Q7. What is your payment term?A: We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !Q8. Can you customized logo and packaging?A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.

---
