Bubble Cooler Bag Making Machine with Bottom Gusset and Zipper Lock

Product Description

CUSTOMIZED MACHINE FOR MAKING THE THERMAL BAG WITH BOTTOM GUSSETING, ZIP LOCK
ALSO CAN USE THE BUBBLE BAG MAKING MACHINE WITH BOTTOM GUSSETING, ZIP LOCK
TWO SIDE SEALING AIR BUBBLE ENVELOPE MAKING MACHINE
Kraft paper & Poly film air bubble courier bag making machine
Three side seal bubble mailing machine
Machine Information: This machine is special designed to make the bubble mailer from PE with bubble linings.
The special purpose express bag will be made after the following procedure:heat compound (costed PE film + bubble film), fold, heat-seal pressure, the cold pressure, stick the adhesive strip, the sawtooth cutter truncation.
Machine Parameter:

Model	DNG-800F
Suitable material	PE+ air bubble or Kraft paper + air bubble
Max.Machine speed	40-80 pcs/min
Max.bag length(Height)	700*1 ( 350 mm*2 when make small bags)
Max.Bag width	450mm
Max.reel width	1400mm of PE film, 1300mm of bubble
Max.reel Diameter	PE: 800mm / PE bubble : 1300mm
Power supply	380V / 3 P/ 50 HZ UP TO YOU
Weight	3800kgs
Overall dimension	16400 *1750*2300mm DNG-800F Two Side Sealing Air Bubble

Machine Show:

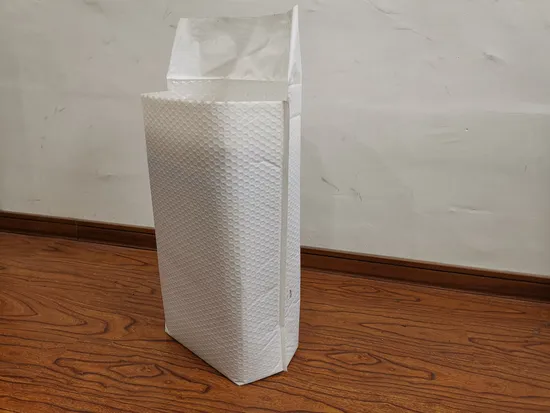

Sample Show:
