Fcrv Ceramic C Rotary Valve-------Specialized Design for Harsh and Highly Erosive Conditions

Product Description

Product Description

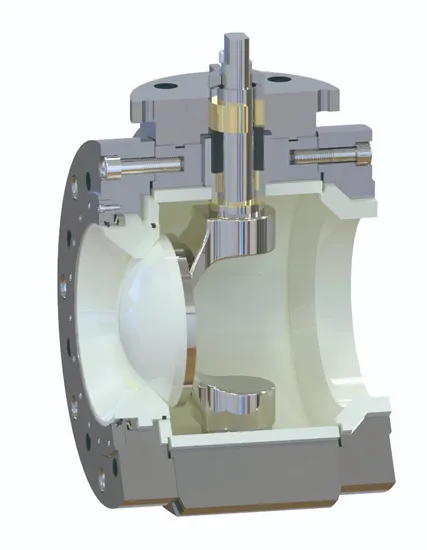

The FCRV Ceramic C Rotary Valve features a unique C-type structure designed to handle the most challenging industrial conditions. With a mechanically connected and embedded ball core, protected by C-type lugs and a ceramic ball crown, this valve excels in environments with crystallization, scaling, caking, high solid content, and clogging. Its cavity-free design ensures no material accumulation, while the fixed ball structure guarantees low operating torque and reliable sealing performance.
Key Features C-Type Structure Design: The ball core is mechanically connected and embedded by C-type lugs and a ceramic ball crown, protecting the lugs from erosion and ensuring durability. Concentric Design: Keeps the ceramic ball crown in close contact with the seat, scraping off adhered materials and maintaining excellent sealing performance. Direct Torque Bearing: C-type lugs directly bear rotational torque, making it ideal for harsh conditions. Cavity-Free Design: Prevents material accumulation inside the valve, ensuring smooth operation. Fixed Ball Design: Prevents ball core movement under pressure, resulting in low operating torque and achieving ANSI Class VI sealing. Ceramic Lined Flow Passages: All passages in contact with the medium are lined with ceramic, ensuring superior corrosion resistance. Anti-Blowout Stem Design: Ensures valve safety and reliability in demanding conditions. Structural Characteristics Structural Form: Fixed Ball Main Technical Parameters: Designed for highly erosive conditions requiring strict sealing while handling viscous media prone to caking, scaling, crystallizing, or containing large particles. Product Benefits Non-Eccentric Design: Ensures no erosion of the valve stem during small opening angles, providing maximum protection to the valve stem. Self-Cleaning Sealing Pair: The ball crown maintains close contact with the seat, shearing off adhered materials and debris, ensuring the cleanliness of the sealing surfaces. Self-Lubricating Properties: The inherent self-lubricating properties of ceramics prevent the ball core and seat from sticking to the medium. Robust Support: The valve stem is set inside the upper support shaft, with the thrust of the medium on the C-rotary borne by the support shafts, preventing tilting and ensuring stable operation. Company
Packaging & Shipping

Applications Harsh Industrial Conditions: Suitable for environments with high solid content, crystallization, scaling, and caking. Chemical Industry: Ideal for handling aggressive and erosive chemicals. Mining and Minerals: Effective in processes involving high wear and solid particulate media. Pulp and Paper Industry: Suitable for controlling fibrous and scaling slurries. Petrochemical Industry: Efficient in handling viscous and erosive media. Invention Patent
