Zmde Versatile Plate Processing CNC Drilling Tool CNC 3D H Beam Drilling Machine for Steel Plates

Product Description

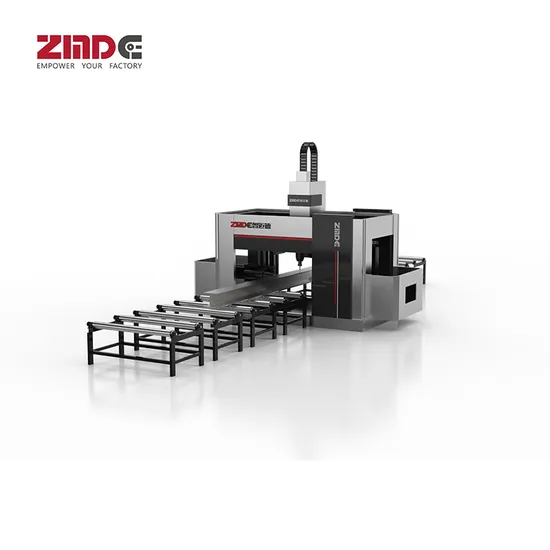

ZMDE Versatile Plate Processing CNC Drilling Tool CNC 3D Drilling Machine for Steel Plates

Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

Experience precision like never before with our Versatile Plate Processing CNC Drilling Tool. Capable of drilling accurate holes on three sides of H-beam steel simultaneously, this advanced machine boasts 7 CNC axes and supports CAD/CAM-generated processing programs. Ideal for large-scale projects, it handles H-beam sections up to 1000×500mm and drills diameters up to 33.5mm. The sophisticated control system integrates computer numerical control, AC servo, photoelectric encoders, and PLC, all designed for seamless operation. Simply input the workpiece size to automatically generate machining programs, with easy storage, recall, display, and processing by part number.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Founded in 2013, ZMDE Co., Ltd. has rapidly established itself as a leader in the development, manufacturing, sales, and service of intelligent assembly building equipment. Recognized as a high-tech enterprise and a national specialist in new industrial technologies, our core expertise lies in steel structure assembly building intelligent industrial mother machines and industry IoT solutions.Our company excels in two primary sectors: intelligent control systems and industrial IoT.
Strategically headquartered in Lingang New Area, Pudong New District, Shanghai, our 32,000-square-meter facility houses the Research Institute of Artificial Intelligence for Assembled Buildings. This state-of-the-art institute is dedicated to advancing high-end core technologies in artificial intelligence for assembled buildings, intelligent buildings, and industrial IoT.
Our Shandong base in Weicheng District, Weifang City, focuses on researching, developing, and producing intelligent industrial mother machines for steel beams used in assembled buildings.Additionally, it specializes in intelligent industrial mother machines for walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients.2. Q: Could you specify the payment terms you accept?A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer).3. Q: What is the typical delivery time for your orders?A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently.4. Q: What is the duration of your warranty period?A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits.5. Q: Do you offer ODM/OEM services?A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.

---
