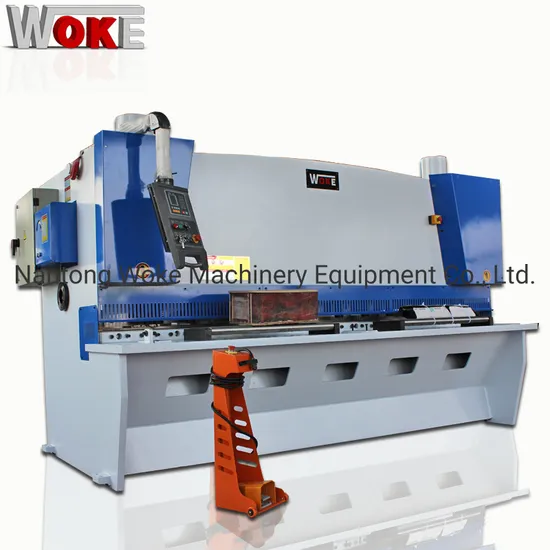

Hydraulic Steel Sheet /Stainless Steel Guillotine Shearing Cutting Cutter Machine QC11y-20X2500 20X3200 20X4000 20mm

Product Description

COMPANY EXPERIENCE
WOKE MACHINERY EQUIPMENT is focus on supplying good quality metal sheet processing equipment in world market in Americas, Middle East, Southeast Asia......It is in this area more than 10 years of experiences.
Woke Machinery Equipment is certified according to ISO 9001, SGS.
Woke Machinery Equipment is always ready to meet customer requirements competitive prices, short production times and high quality equipment. The company's motto is "Our goal is to offer our customers high quality at an affordable price"
MACHINERY SUPPLY RANGE
PERFORMANCE OF SHEARING MACHINE

1.Come with world famous Estun E21s NC control system, stable performance and easy to operate. 2.Steel welded structure, vibration aging treatment to eliminate internal forces, have high strength and good durability. 3.Advanced integrated hydraulic system, easy for maintenance. 4.The shear stroke and cut times can be controlled. 5.Feeding balls on worktable to reduce the hurt of the plates and reduce conflict force. 6.Manual adjusting of blade clearance and adjustment of gap can be showed on an indicating dial. 7.The blade is of 4 cutting edges, that mean you can change the cutting edge if long time use. 8. Front supprt arms with scale and standard protective guard, meet with internationl safety standard.

TECHNICAL PARAMETERS

Model	Cutting Thickness	Cutting Length	Cutting Angle	Strength	Strokes	Main Power
	(mm)	(mm)	(°)	(KN/CM)	(spm)	(kw)
QC11Y-4X1500	4	2000	0.5°~1.5°	≤450	20	5.5
QC11Y-4X2500	4	2500	0.5°~1.5°	≤450	18	5.5
QC11Y-4X3200	4	3200	0.5°~1.5°	≤450	14	7.5
QC11Y-4X4000	4	4000	0.5°~1.5°	≤450	10	7.5
QC11Y-6X6000	6	6000	0.5°~2.0°	≤450	20	11
QC11Y-6X2500	6	2500	0.5°~1.5°	≤450	17	7.5
QC11Y-6X3200	6	3200	0.5°~1.5°	≤450	14	7.5
QC11Y-6X4000	6	4000	0.5°~2.0°	≤450	10	7.5
QC11Y-8X2500	8	2500	0.5°~2°	≤450	14	11
QC11Y-8X3200	8	3200	0.5°~2°	≤450	10	11
QC11Y-8X4000	8	4000	0.5°~2°	≤450	8	11
QC11Y-10X2500	10	2500	0.5°~2°	≤450	12	11
QC11Y-10X3200	10	3200	0.5°~2°	≤450	10	11
QC11Y-10X4000	10	4000	0.5°~2°	≤450	8	11
QC11Y-12X1500	12	1500	0.5°~2°	≤450	14	15
QC11Y-12X2500	12	2500	0.5°~2°	≤450	10	15
QC11Y-12X3200	12	3200	0.5°~2°	≤450	10	22
QC11Y-12X4000	12	4000	0.5°~2°	≤450	7	22
QC11Y-12X6000	12	6000	0.5°~2°	≤450	10	22
QC11Y-16X2500	16	2500	0.5°~2°	≤450	8	22
QC11Y-16X3200	16	3200	0.5°~2°	≤450	7	22
QC11Y-16X4000	16	4000	0.5°~2°	≤450	6	22
QC11Y-16x6000	16	6000	0.5°~2°	≤450	6	37
QC11Y-20X2500	20	2500	0.5°~2°	≤450	6	30
QC11Y-20X3200	20	3200	0.5°~2°	≤450	5	30
QC11Y-20X4000	20	4000	0.5°~2°	≤450	5	30
QC11Y-25X2500	25	2500	0.5°~2°	≤450	5	37
QC11Y-25X3200	25	3200	0.5°~2°	≤450	5	37
QC11Y-30X2500	30	2500	0.5°~2°	≤450	4	45
QC11Y-30X3200	30	3200	0.5°~2°	≤450	4	45

Our Factory Workshop Show
MATURE CONTROL SYSTEM FOR CHOOSE
Estun E21s NC, frequency drive or reducer E200PS, servo drive Delem DAC360, CNC Customers witnessed WOKE growth

---
