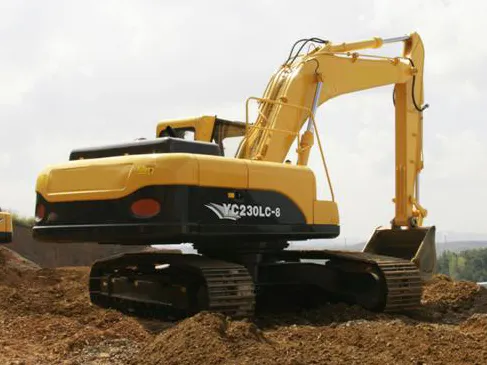

23 Ton Crawler Excavator Hot Sale Made in China Yc230

Product Description

3.5ton Mini Hydraulic Crawler Excavator Yc35sr
Product Description
Weight:22360kg(49295lbs)
Engine: Cumins 6B5.9/Cumins QSB6.7
Rated power:112kW/2200rpm(150.08hp/2200rpm)
Standard bucket capacity:1.05m3 (37.1cu.ft.)
Standard bucket wide:1385mm(4'6''in)

Original imported engine with Tier 2 emissions, conducive for energy saving; features radial seal air cleaner and air pre-cleaner, effectively extending engine service life. Original imported hydraulic components, featuring high work efficiency and big digging force.

New type cab and seat, strengthened working devices, with up to 360°swing with radius of up to 3.7m; strong adaptability
in mining environments. Electronic controls offer real time monitoring of operating status, with self-diagnosis and recording
functions, electronic control throttle, and choice of four operating modes. Blade and breaking pipe are standard equipment, making this a multifunctional machine.

Multi-function GPS with remote monitoring and two-way data transmission, and real time operating status of the machine.
Product Parameters

project			YC230-9
Basic parameters	Total Weight	kg	23100
	Standard bucket capacity	m³	1.08
	Standard bucket width	mm	1340
Performance parameter	engine model		/
	Engine rated power	kW/rpm	124/2050
	Gradeability	°	35
	Maximum digging force of stick	kN	102
	Maximum digging force of bucket	kN	139.3
	Driving speed	km/h	3.4/5.2
	main traction force	kN
	Platform rotation speed	rpm	13~15
Job parameters	Maximum digging height	mm	9725
	Maximum digging depth	mm	6625
	Maximum digging radius	mm	9890
	Maximum ground excavation radius	mm	9725
	Maximum unloading height	mm	6815
	Minimum radius of gyration	mm	3410
	Maximum vertical digging depth	mm	6040
Transport size	Total length (transportation status)	mm	9695
	Overall width (transport state)	mm	2990
	Total height (transport state)	mm	3115
Other parameters	Track width	mm	2990
	Track length	mm	4450
	Track shoe width	mm	600
	Minimum ground clearance	mm	470
	Balance weight off the ground	mm	1070
	Radius of tail gyration	mm	2945
	Track wheelbase	mm	3655
	Fuel tank capacity	L	350
	Hydraulic oil tank capacity	L	210
Optional tooling			Accessory pipeline
			Hammer
			Lengthen working device
			Boat digging chassis
