Rt315vsie Crawler Mobile Sand Maker

Product Description

Product Description Runtian crawler mobile sand maker adopts the most widely used and best-selling sand making machine in the world. This equipment integrates numerous latest research achievements such as crushing technology, hydraulic technology, computer technology, and manufacturing technology. You can choose to shape or sand according to the material processing needs. The products are widely used in building materials, chemicals, highways, mining, highways, high-speed railways, high-rise buildings, etc.
Applicable materials: granite, diabase, basalt, limestone, river pebbles, iron ore, copper ore, dolomite, rhyolite, manganese ore, phosphate rock.

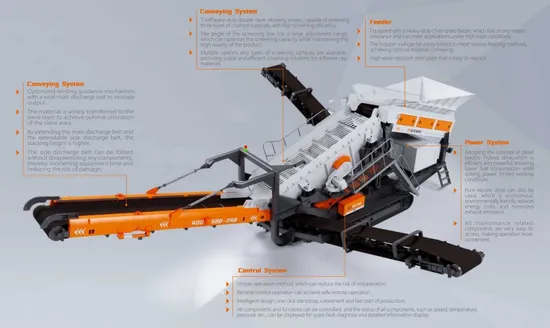

Detailed Photos
Product Parameters

RT315VSIE Crawler Mobile Sand Maker
Feeding Device	Max.feeding Size 40mm
	Feeding Height 3000mm
	Hopper Volume 3m³
	Feeding Capacity 300t/h
Crusher	Crusher Mode SK2400
	Crusher Motor Power 315kW
Main Conveying Belt	Belt Width B1000mm
	Power 15kW
Mixed Material Conveying Belt	Belt Width B1000mm
	Power 7.5kW
Retumed Material ConveyingBelt	Belt Width B650mm
	Power 5.5kW
Transmission Conveying Belt	Belt Width B500mm
	Power 3kW
WholeMachine	Total Power 364.5kW
	Total Weight 55t
	Working Mode ExternalPower Supply
	Working Dimension 18.5mx3.9mx5.1m
	Transportation Dimension 20mx3.9mx3.8m

---
