Profibus Cable PA 1X2X18AWG Industrial Communication Control Cable Fieldbus Cable Belden 1 Pair Signal Bulk Copper Wiring Twisted Pair /Prysmian PE/Fpe/PVC

Product Description

PROFIBUS PA Cable Application
PROFIBUS Process Automation (PA) for the connection of control systems to field instruments on process automation applications.
Dual Layer screens against strong electromagnetic interference

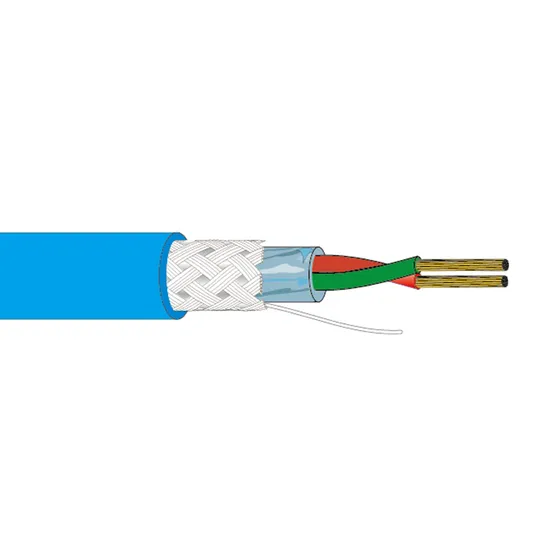

Construction
1. Conductor: Solid Oxygen Free Copper (Class 1)
2. Insulation: S-PE
3. Identification: Red, Green
4. Filler: Halogen Free Compound
5. Screen:
1. Aluminum/Polyester Tape
2. Tinned Copper Wire Braided (60%)
6. Sheath: PVC/LSZH
7. Sheath: Blue
(Note: Armor by Galvanized Steel Wire or Steel Tape is upon request.)
Standards
BS EN/IEC 61158
BS EN 60228
BS EN 50290
RoHS Directives
IEC60332-1
Installation Instructions
Installation Temperature: Above 0ºC
Operating Temperature: -15ºC ~ 70ºC
Minimum Bending Radius: 8 x overall diameter
Electrical Performance

Working Voltage	300V
Test Voltage	2.5KV
Characteristic Impedance	100 Ω ± 10 Ω @ 1MHz
Conductor DCR	22.80 Ω/km (Max. @ 20°C)
Insulation Resistance	1000 MΩhms/km (Min.)
Mutual Capacitance	60 nF/Km @ 800Hz
Velocity of Propagation	66%

Product Parameters

Part No.	No. of Cores	Conductor Construction (mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Screen (mm)	Overall Diameter (mm)
AP-PROFIBUS-PA 1x2x18AWG	1x2x18AWG	1/1.0	1.2	1.0	AL-Foil + TC Braided	7.5
AP70001E	1x2x18AWG	16/0.25	1.2	1.1	AL-Foil + TC Braided	8
AP70110E	1x2x18AWG	16/0.25	1.2	1.0	AL-Foil + TC Braided	7.8

Company Profile
ABOUT US:
Shanghai Aipu Waton Electronic Industries Co.,Ltd. is a high-tech enterprise, who provides full solutions for Extra Low Voltage Copper Wires and Cables (Belden Equivalent Cable), Instrumentation Cable, Industrial Control Cable, Optic Fiber Cable, Structured Cabling System and Video Surveillance System. Products include but not limited to Cat5e Cables, Cat6 Cables, Cat6a Cables, Cat3 Cables, Multi-pair LZSH cables, Elevator cable, FTTH Bow-type, Single mode and multimode Fiber Optic Cable, Patch Panel, Patch Cord, Module or Keystone Jack, Face Plate, Cable Cabinets.
Shanghai Aipu Waton Electronic Technology (Group) Co.,Ltd., was founded in 1992. Through years of development, Aipu Waton has become a comprehensive high-tech enterprise integrated with manufacture, research & development, sales and service, which achieves management capital over 2000 Million RMB, factory area 80000m2, employees about 2000(including R&D staff more than 100). Our market and service network cover almost all large and medium-sized cities in China.
With our reliable quality and perfect service, we have been awarded well-known reputation, like "Top 10 National Brands in China Security Industry", "Top 10 Enterprises in China Security Industry", "Shanghai Famous Brand" and "Shanghai Enterprise Star" etc. We are sole or appointed supplier for a number of national key projects, such as Beijing National Stadiums, China Safety City Project, Shanghai World Financial Center, Daya Bay Nuclear Power Station etc.
Being the leading enterprise in the industry, awarded as the vice-director unit of China Security and Protection Industry Association, Aipu Waton is committed to creating international famous brand as our responsibility. We keep expanding the production capability and renovating technology and improving service, management and company culture so as to provide high performance-price ratio products to all of our customers.
Aipu Waton has maintained excellent and long-term relationship with thousands of customers and makes full efforts to achieve mutual development with them.
Aipu Waton, your reliable partner.
FAQ
1.Q: What' s your MOQ?
A: For Aipu brand cables in stock MOQ is 305m/1000ft, if for customized items, the MOQ are 100ctns.
2. Q: How to get a sample?
A: Choose the style you want from our website, provide the address for us to quote the express fee. If the freight fee could be accepted, after received the payment, we will send out within 7 working days for the stock product. If for the customized product, it will take about 5-15 days. It would be glad and more convenient for both of us if you have an Express collect account.
3. Q: Are you a manufacturer or a trading company?
A: We are a structured cabling and ELV wire & cable manufacturer with 30 years production experience.
4. Q: Can you accept customize or design for us?
A: Yes, all of our products could export as our own brand or customize as customer requirement.
5. Q: Is it possible to get a free sample?
A: Yes, the small samples are free, and shipping cost have to be paid by your esteemed company.
6. Q: If I want to purchase, how to pay?
A: Usually, we do T/T in 30% deposit before production, 70% balance against copy of B/L, or LC. Other payment terms are negotiable depending on customer's request.
7. Q: What is your warranty period?
A: We provide 25 years warranty for the cabling products.

---
