1.7inch 250-8 Ferrite Ccar Tweeter Sound PRO Compression Driver Speaker

Product Description

Ruizheng Speakers primary line consists of high frequency drivers and coaxial components, and cone drivers. We have made a strong commitment to provide a well-balanced line of Low Frequency drivers that range from 6.5" to 24", as well as a very complete line of High Frequency drivers. Our engineers have optimized each design with CLIO software to ensure each design operates to its fullest potential time and time again. From nightclubs, to stadiums, to concert halls around the world, our products are chosen based on their reliability, consistency and most of all for their outstanding sound quality.
https://ruizhengsound.en.made-in-china.com/product/qXkQFRaECOpK/China-3inch-High-Precise-Y35A-Ferrite-1-4-quot-Throat-Compression-Driver-Speaker.html

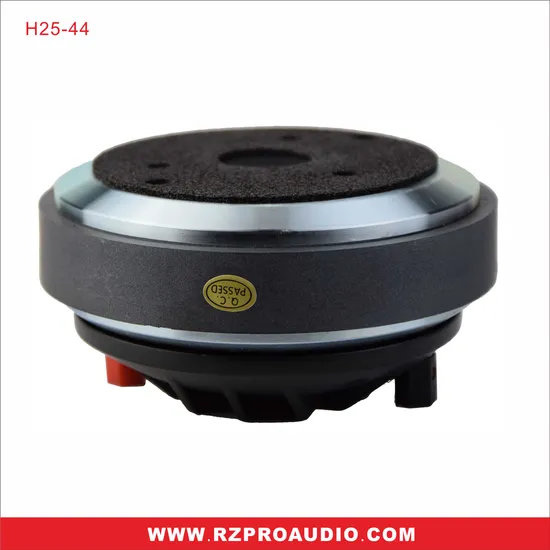

MODEL H25-44
Specifications			Thiele Small Parameters
TYPE	Compression driver		Fs	1000 Hz
Exit Throat Diameter	25.4 mm/1 in		Re	5.8 ohm
Rated impedance	8 ohm		Diaphragm Material	PEN
Nominal (AES)	50 W		Suspension Material	PEN
Continuous Program	100 W		Magnet	Ferrite
Sensitivity(1w/1m)	107 dB		Phase plug	Plastic
Frequency Range	1000Hz-18000Hz
Voice Coil Diameter	44.4 mm/1.7 in
Voice Coil Material	ALR outside
Mounting lnformation			Shipping lnformation
Overall Diameter	φ120 mm/φ4.7 in		Net Weight (1unit)	2.3 kg
Bolt Circle Diameter	φ76 mm/φ3.0 in		Shipping Weight (10unit)	24.6 kg
Bolt Hole Diameter	2-M6mm/2-M0.24 in		Package Size (10unit)	34x27x18 cm
Depth	63 mm/2.5 in

Founded in 2011, ruizheng audio is designing and distributing amplifier, speakers, supplying OEM/ODM components to many of the professional audio brands in the market today.

---
