All New PVC 560 Tons Injection Moulding Machine

Product Description

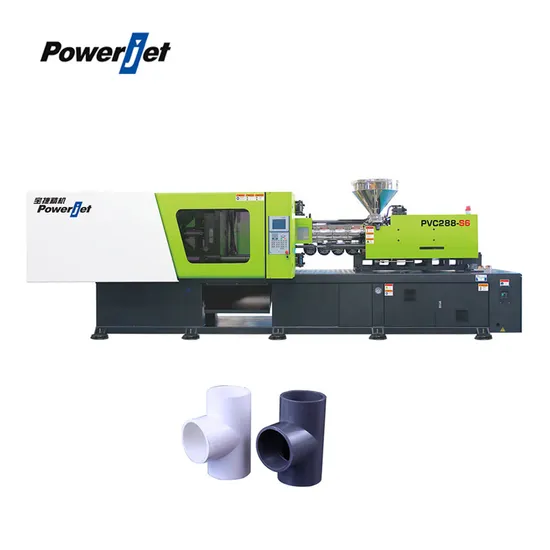

PVC FITTING INJECTION MOLDING MACHINE
Powerjet new type PVC fitting injection molding machines are specialized for different sizes of PVC fitting. Saving 30%~50% of energy by using a servo motor and more device options are available to fulfill customer requirements.
Clamping Force - 90~680(Ton)
Shot Weight(PVC) - 179~2847(g)
Applications - PVC Fitting
FEATURES:
1:Specialized PVC Process - Standard TECHMATION control system, the control procedure is special designed for PVC fitting.
2:Widened Door - Widened safe door makes easier for removal of PVC fitting.
3:PVC Screw - Specialized PVC Screw solve the problems of drawing and yellowing of PVC products effectively.
4:Air Cooling - Excellent air cooling control improve the stability of PVC heat-sensitivity molding process.
5:Plasticization Precision - The charge adopts high torque and low speed motor, which improves the plasticization precision.
6:Servo & Variable Drives - Servo and Variable pump are available according to every production conditions.
7:Core Pulling - Standard two sets of core pulling, more sets of core pulling are available.
8:Temperature Control - Solid state replays for temperature control is used to ensure that the barrel temperature is controlled within a reasonable range.
Product Description
Product Parameters

	DESCRIPTION	UNIT	PVC288-S6/V6
LAMPING UNIT	Clamping force	KN	288
	Opening stroke	mm	550
	Max.datlight	mm	1160
	Platen size	mm	850*850
	Space between bars	mm	610*610
	Max.mold height	mm	610
	Min.mold height	mm	280
	Ejector stroke	mm	145
	Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	60
	Screw L/D Ratio	L/D	20
	Injection Pressure	MPa	186
	Shot volume	cm3	792
	Shot weight (ps)	g	707
		oz	24.9
	Injection rate	g/s	231
	Screw stroke	mm	280
	Screw speed	rpm	147
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	22/40.1
	Heater power	KW	15.95
GENERAL	Oil tank capacity	L	420
	Machine weight	T	8.2
	Machine dimensions (L*W*H)	m	5.85*2.1*2.03

Packaging & Shipping
Company Information
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time?
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.

---
