Vhp800 Vmc850 5 Axis Simultaneous CNC Machining Center

Product Description

Vhp800 Vmc850 5 axis simultaneous CNC Machining Center
Advantage :
1. 5-axis synchronization machining;
2.high efficient and reliable.
1.Product introduction and use
The feed axis of the VHP800-5AX 5-axis synchronization machining center is the linear coordinates of X, Y ,Z three axes, and the rotary coordinates of A and B two axes, to realize the five-axis synchronization function. The spindle is driven by the servo motor.The machine can process all kinds of vanes , vanes of steam turbines and gas turbines, all kinds of narrow and long shaped special curved parts, such as aircraft propellers and engine impellers. It is widely used in electric power, aviation, industry and other industries.
2. structure feature

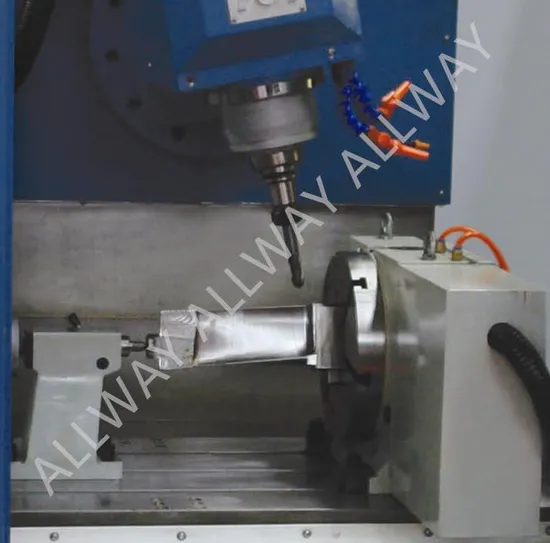

5-axis synchronization machining
B-axis Speed range ±90
3.STANDARD CONFIGRATION:
1)X axis high rigid roller linear guideway;Y, Z axis adopts quenching rectangular guideway; Y axis adopt super wide 4 guideway support
2)HNC-21MD 5-AXIS simultaneous displacement CNC system
3)TK13315E Nc rotary table from Chinese famous brand.
4)High speed spindle unit(80-8000rpm).
5)Spindle center blow
6)spindle motor, servo 7.5 Kw;
7)automatic loosen and tighten tools, configuration floating pneumatic tool device
8)High pressure water cooling
9)air cooled
10)X, Y, Z, B axis servo motor torque 27 nm, A axial feed motor torque 11 nm
11)Interval auto-lubricating.
12)Separated type electronic handwheel.Standard exterior RS232 interface.
13)Three color lamp
14)Full splash guard.
4.Main technical parameters

Specification			Unit	Parameters
Max.length of workpiece			mm	800
Max.diameter of workpice			mm	420
X-axis travel			mm	800
Travel	Y-axis travel		mm	450
	Z-axis travel		mm	500
	A-axis Speed range		.	0-360
	B-axis Speed range		.	±90
	Spindle nose to table		mm	210-710
	Spindle nose to the Rotary Centre of the B-axis		mm	200
	Spindle center to column Guide-way face		mm	620
Feed	X-axis Feeding speed		mm/min	15000
	Y-axis Feeding speed		mm/min	15000
	Z-axis Feeding speed		mm/min	12000
	A-axis maximum speed		rpm	11.1
	B-axis maximum speed		rpm	20
	Cutting feed rate		mm/min	1-5000
Workbench		Size of the table	mm	570×1210
		Max.loading weight of the table	kg	750
		The high from worktable to ground	mm	850
		T-slot NO./width/distance of the table	mm	3/18/150
Swiveling head (B-axis)		swiveling head (B-axis) maximum turning torque	Nm	1500
		swiveling head (B-axis) reduction ratio		1:71
		swiveling head (B-axis) top speed	rpm	20
		swiveling head (B-axis) Slewing range		-90°~90°
Spindle	max.speed		rpm	80-8000
	diameter		mm	70
	nose taper			BT40
Others	N.W		kg	9500
	Overall dimension		mm	2600×3200×2600

5.OPTIONAL CONFIGURATION:
1)FAUNC 0i MF1, Mitsubishi, Siemens,GSK,and others
2) air gun for clean
3) coolant through spindle of Taiwan;
4) Chain type auto chip removal device ;
5)setting tool device.
