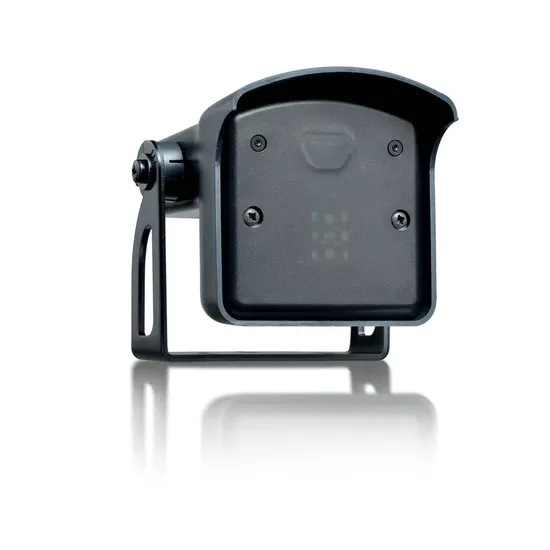

Industry Door Sensor/Detection Only of Vehicles Moving Towards The Sensor

US$600.00
10-29 Pieces
US$580.00
30-49 Pieces
US$500.00
50-99 Pieces
US$450.00
100+ Pieces

Basic Info.

Model NO.
fillcon
Installation Mode
Top Installation
Certification
CE, RoHS
Application
Industry, Traffic, Industry Door
Transport Package
Air Transportation/Sea Transportation
Origin
China
Production Capacity
1000000PCS/Year

Product Description

Product Description Detection only of vehicles moving towards the sensor Technology:microwave doppler radar
Transmitter frequency:24.150 GHz
Transmitter radiated power:< 20 dBm EIRP
Detection mode:< 5 mW/cm²
Detection mode:motion
Detection zone:FALCON: 4 x 5 m ; FALCON XL: 4 x 2 m (typical at 30° and field size 9)
Min. detection speed:5 cm/s**
Supply voltage:12 V to 24 V AC ±10 %; 12 V to 24 V DC +30 % / -10%
Mains frequency:50 to 60 Hz
Max power consumption:< 2 W
Output:relay (free of potential change-over contact) Max. contact voltage:V AC/DC Max. contact current:1A (resistive) Max. switching power:30 W (DC) / 42 VA (AC)
Mounting height: LED-signal: red: detection state, parameter indication; green: value indication Degree of protection:FALCON: 3.5 m - 7m; FALCON XL: 2 m - 3.5 m
Degree of protection:IP65
Temperature range:from -30 °C to + 60 °C
Dimensions: 127 mm (L) x 102 mm (H) x 96 mm (W)
Tilt angles: Tilt angles: 0° to 180° vertical
Materials: ABS and polycarbonate
Weight: 400 g
Cable length: 10 or 15 m
Norm conformity: EN 300 440-2 V1.4.1; EN 301 489-1 V1.9.2; EN 301 489-3 V1.6.1; EN 62311; EN 62479 Installation Instructions
Performance
After Sales Service 7*24 online support
1vs1 expert service
Quickly response time
Site support
Application
Detailed Photos
Our Advantages Professional provider for industry door solution
Full product line for industry door
One-stop solution for industry door
Professional pre-sale service
