Dk7735A Wire Cutting EDM Machine

Product Description

Product Description
The MS-650AC is a high efficiency wire cutting machine with high precision and rigidity. It is a set of machine tool electrical appliances, high frequency power supply, servo control and graphics programming as one, to achieve high efficiency, high precision, high finish, simple processing control, greatly improve the processing level of fast wire cutting machine.Flexible commutation with frequency converter is adopted in machine tool commutation, which can arbitrarily adjust the speed of wire conveyor drum, thereby improving the smoothness of workpiece.

The mechanical system consists of machine bed, coordinate table, wire transport mechanism, wire frame mechanism, taper mechanism, lubrication system and so on. Machine tool bed is usually a box structure, which is the installation platform for each component, and is closely related to the accuracy of the machine tool. It useS the high precision guide rail with high strength, heavy loading capacity and low resistance. The stability of the machine is also excellent. The failure rate is almost 0.

Main Features

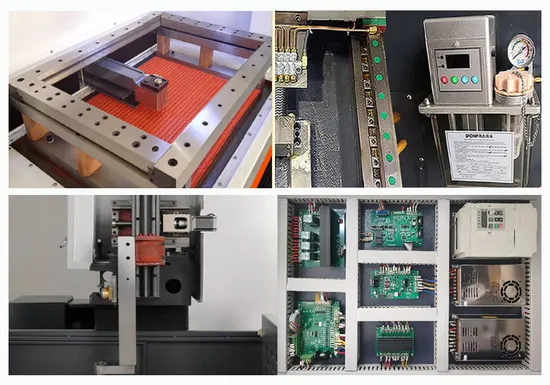

Select paired clearance-free bearings to improve accuracy. Selection of high quality ball screw Using steel-inlaid guide rail Good assembly process requirements By using frequency converter, the speed of the wire drum can be adjusted arbitrarily, thus improving the smoothness of the workpiece Detailed Photos
Product Parameters

Item	Specifications	MODELS→	DK7735A	DK7745A	DK7750A
Travel Range	X/Y AxisTravel	mm	350/450	(450x550)/630	(500x630)/800
	Z AxisTravel	mm	400	400	500
Control System	CNC System	-	Windows7	Windows7	Windows7
Worktable	Worktable (WidthxLength)	mm	720x480	830x570	1160x780
	Max. Workpiece Thickness	mm	450	450	500
	Max Workpiece Weight	kg	450	550	8000
	Working Tank Dimensions	mm	880x580x400	1000x680x400	1260x820x480
Spindle	Taper Axis Travel (Ux V)	mm	60x60	60x60	60x60
	Max Cut Taper	mm	6~15°/100	6~30°/100	6~30°/100
Feedrate	Max Cutting Speed	mm²/min	>=300	>=300	>=300
Motor	Power Supply	KVA	220V 50/60HZ 1.5	220V 50/60HZ 1.5	220V 50/60HZ 2.0KVA
Accuracy	Positioning Accuracy	mm	0.015	0.015	0.015
	Repositioning Accuracy	mm	±0.008	±0.008	±0.008
	Machining Accuracy	mm	0.015	0.015	0.015
Machine Dimension	(WxDxH) Machine Dimension	mm	1600x1250x1750	1650x1350x1700	1850x1650x1850
	Machine Weight	kg	1550	1850	2500

Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
