Mini Cable TV CATV FTTH/FTTB 1550nm Optical Receiver/Node with Wdm

Product Description

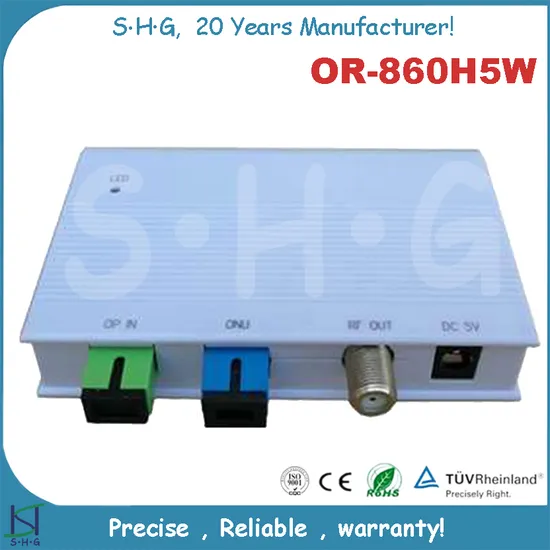

SHG OR-860H5W series optical receiver is a kind of optical receiver specially designed for FTTH application scene, which adopts low-noise MMIC amplifying circuit to ensure optical receiver has excellent distortion index and high MER value at low input power.
Keywords 1. Mini ftth catv optical receiver made in China
2. Frequency scope : 45~1002MHz
3. Net weight: 0.2kg
4. Optical connector : SC/APC or FC/APC
Features 1. -10~0dBm AGC to assure good performance;
2. High response PIN optoelectronic converter to assure good CNR data for the complete machine;
3. High-quality plastic case, looks beautiful and easy to install;
4. DC input is standard 2.0 socket,input power voltage +5VDC;
5. Status indicator LED diode to display input optical power.
Main application
1. FTTP
2. FTTH FTTO
Specifications

Items	Units	Performance
Model	--	OR-860H5W
CATV optical wavelength	nm	1540~1560
Pass optical wavelength	nm	1310/1490
Pass loss	dBm	≤1.0
Optical connector	--	SC/APC
Optical power range	dBm	-18~+2
Optical AGC range	dBm	-10~0
Optical return loss	dB	≥45
Flatness	dB	≤±1.0
Frequency range	MHz	47~1000
Nominal output level	dBuV	≥80@-8dBm
Output return loss	dB	≥13
Optical link C/N	dB	≥46
Optical link CTB	dB	≥60
Optical link CSO	dB	≥60
Power voltage	V	DC5V
Power consumption	W	2.0(max)
Operation environment temperature	ºC	-20~+55
Net weight	g	150
Outer dimension	mm	128×79×26

Other Optical Transmission Equipment
Other Optic test instruments Certificates
ISO9001:2008, CE, RoHS, REACH Our Advantages Why Choose us
FAQ FAQ
Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group. Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received). Q4. Where is your nearest sea-port and airport? SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q5. What's your Payment Term? SHG: We perfer T/T. 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Q6. Quality and Reputation: SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.

---
