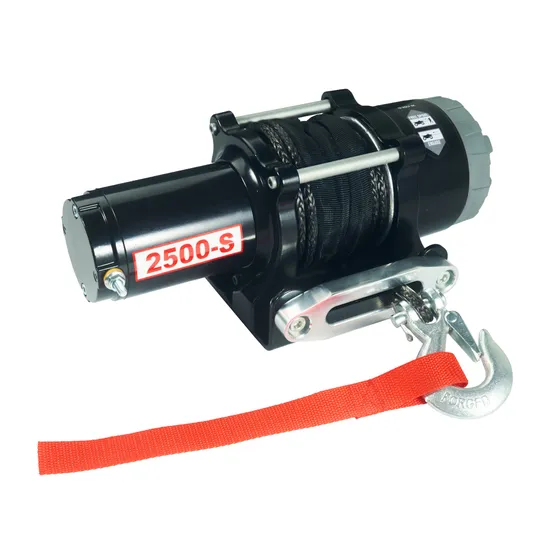

12V 2500 Lbs Electric Winch with Synthetic Rope for ATV off-Road Self-Rescue

Product Description

This Prowinch 2500 lbs 12V Electric Winch offers powerful performance in a compact size. The winch is IP67 waterproof, which make it perfect for a wide variety of uses such as off-roading and towing. It is easy to install, which allows you to get set up quickly.
Product Description
Rated line pulls: 2500 lbs. (1134 kg)
Gear reduction ratio: 136:1
Motor: Permanent magnet motor(Input Power)1.0 hp / 0.75kW (DC 12V)
Free Spooling Clutch:Turn
Braking action:Automatic in the drum
Fairlead:Hawse
Remote Control Cable:3.1m
Overall dimensions: 12.99" x 4.61" x 4.84" (330mm X 117.2mm X123mm)
Drum size: Ø 2"x3.03" (Ø 50.8mm x 77mm)
Rope: Ø 3/16" x60'(Ø 4.8mm x 15.3 m)
Mounting bolt pattern :4.88"x 2.99"(124mm x 76mm)
12 DC Performance specs (First layer of drum)

Line pull	Line speed	Current	Pull by layer
lbs. (kg)	ft/min (m/min)	Amps (Max)	Layer/Lbs.(kgs)
0	18.4 (6.5)	17 amps	1/2500 (1134)
500 (227)	17.1 (5.2)	40 amps	2/2132 (967)
1000 (434)	13.5 (4.1)	70 amps	3/1858 (843)
1500 (680)	11.5 (3.5)	90 amps	4/1647 (747)
2000 (907)	9.2 (2.8)	115 amps	5/1479 (671)
2500 (1134)	8.2 (2.5)	145 amps

Multiple accessories
Multiple order qty:30
G.W/N.W:10.8/9.0kg(1PC/CTN)
Shipping Carton Size:46*32*18cm(1PC/CTN)
One 20 feet container can fit in 720 PCS winches. Mounting plate Hawse fairlead 1/4 Hook 8 AWG Power Cables 200A Contactor Handlebar Switch
Partial laboratory equipment Overhead load testing machine Pulling force testing machine Vibration testing machine High-pressure water jet testing Dust-resistant testing chamber Contactor testing machine
FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
we can sure within 30-35 days delivery time, but depends on the quantity !

---
