750W Brushless Shaft Drive Electric Bike Sport Children Four Wheeler Motorcycle Mini Kids Utility Motor ATV Quad

Product Description

Company Profile
Product Description

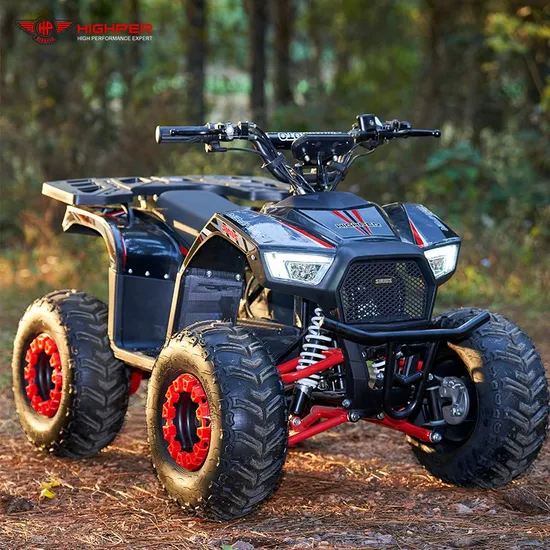

Product Parameters HIGHPER brings a new model for 2023, the ATV-13E(C). It is a member of the Sirius series. The design leans toward the model for agricultural use. The wide frame and plastic parts can bring comfort to children when riding. The dimensions of the whole car are 1215*750*775MM, with a sitting height of 510MM and a wheelbase of 785MM.
In terms of design, Sirius uses a very large headlight, and the brake light at the back has left and right, making it safer to drive at night. Also it has a beautiful front bumper and a rear rack.
Motor
We use a 750w rated power axle transmission motor with differential speed, the maximum power can reach 1500w, and the maximum speed can reach 33km per hour. The differential motor is safer when turning and reduces the wear and tear on the tires and motor for longer life.
The battery we have as standard is a 48v12ah high quality lead acid battery. The single driving range can reach 30KM and the driving time is about 40 minutes. If you want a larger battery, 48V20AH lead-acid or lithium batteries are available. At the same time, the battery is removable, you can always take out the battery and charge it in a safe and convenient place. Or you can buy two sets of batteries and rotate them to increase riding time.
The braking system uses front drum brakes and rear hydraulic disc brakes, safe and efficient!
Tires are made of front and rear 145*70-6 size tubeless high quality tires. Equipped with wheel decoration cover.
Sirius series is now in mass production, welcome to inquire!

MODEL	ATV-13E(C)
MOTOR	BRUSHLESS SHAFT DRIVE WITH DIFFERENTIAL
MOTOR POWER	750W 48V (MAX. POWER 1500W)
MAX SPEED	35KM/H
THREE SPEED KEY SWITCH	AVAILABLE
BATTERY	48V12AH LEAD-ACID (48V20AH OPTIONAL)
HEADLIGHT	LED
TRANSMISSION	SHAFT
FRONT SHOCK	HYDRAULIC SHOCK ABSORBER
REAR SHOCK	HYDRAULIC SHOCK ABSORBER
FRONT BRAKE	DRUM BRAKE
REAR BRAKE	DUAL HYDRAULIC DISC BRAKE
FRONT & REAR WHEEL	145*70-6
WHEELBASE	785MM
SEAT HEIGHT	510MM
GROUND CLEARANCE	130MM
NET WEIGHT	69.60KG(48V12AH)
GROSS WEIGHT	81.00KG(48V12AH)
MAX LOADING	65KG
PRODUCTS SIZE	1195x720x770MM
OVERALL DIMENSIONS	1090x650x525MM
CONTAINER LOADING	64PCS/20FT, 178PCS/40HQ
PLASTIC COLOR	WHITE BLACK
STICKER COLOR	RED GREEN BLUE ORANGE PINK
