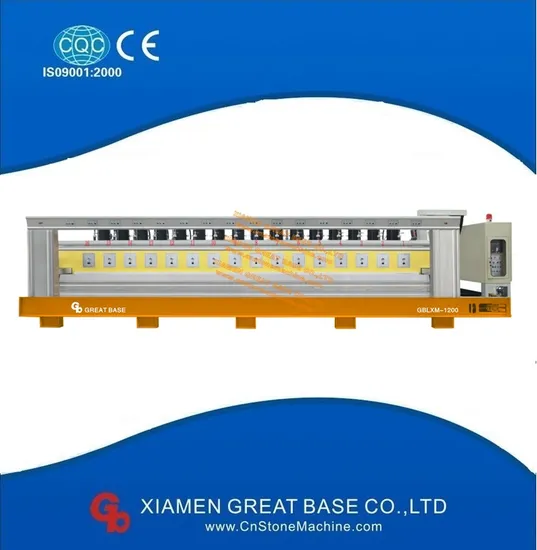

Granite Slab Stone Polishing Machine Line

Product Description

Product Description
It adopts PLC terminal control system; Operator can set the parameters by the programmable controller with LCD screen.It is equipped with trouble alarm and abrasive block consumption alarm systems. It is qualified for continuous grinding and polishing granite stone slabs. The speeds of work piece conveyor and cross beam adopt converters to adjust their speed. Its processing width and working pressure of grinding heads are adjustable. Each grinding head can rise and fall automatically following the work piece movement. The machine also has the function of avoidance. Meanwhile, the main motor of this machine is only 7.5kw with 16 pcs and it uses the common round abrasive, so that it has the high efficiency energy saving and environmental protection function.

Technical Data
Name	Unit	GBLXM-1200-12	GBLXM-1200-16	GBLXM-1200-20	GBLXM-1200-22
Max. polishing width	mm	600-1250
No. of heads	pcs	12	16	20	22
Useful working thickness	Mm	13-50
Useful abrasive		Resin abrasive
Speed of conveyer belt	Mm	0-2800
Frequency of front-back swing	Times/min	30 times/m( go and back)
Main power	KW	7.5kw*12	7.5kw*16	7.5kw*20	7.5kw*22
Journey of air cylinder	Mm	10

Main Features
1) PLC control system
2) It uses resin abrasive which is cheaper than fickert abrasive.
3)Each head is with 7.5kw, the trandisional one is 15kw each head, so it is save the electrical cost.
Detailed Images

Name: PLC Brand: Mitsubishi Original: Japan

Name: Inverter Brand: YASKAWA Original: Japan
Name: Grinding head Original: Chinese

Name: Oil pump Original: Chinese
Packing & Delivery

Packaging
Size	10000 (L) * 2230 (W) * 2200(D)
Weight	14T
Packaging Details	The normal package is nude package. .If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	3000 (L) * 1300 (W) * 2100 (D)
Weight	1.2 T
Packaging Details	The normal package is nude packing. If container is too tigher,we will use pe film for packing or pack it according to customers special request.

---
