High Performance Uni-Tube Single Mode Gyffy GYFXTY Fiber Optic Cable

Product Description

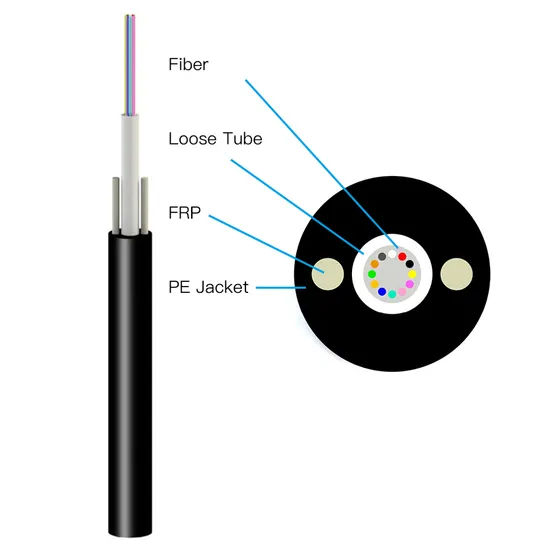

Cross Section
Detailed Photos
Product Description
Fibers are positioned in a central tube made of high-modulus plastic and filled with tube gel. The tube is armored with aramid yarns and water blocking yarns. Finally a PE jacket is extruded.
Good mechanical and thermal performance
Hydrolysis resistant loose tube
Tube filling compound ensures critical protection of fiber
Armored with aramid yarns and water-blocking yarns
Excellent crush resistance and flexibility
Application
Self-supporting Aerial Installation

Product Parameters

Item	Characteristics		Unit	Value
Geometrical	Cladding Diameter		μm	125.0±1.0
	Cladding Non-circularity		%	≤1.0
	Core-Cladding Concentricity Error		μm	≤0.6
	Core Non-circularity		%	≤12
	Coating Diameter		μm	245±10.0
	Coating-Cladding Concentricity Error		μm	≤12
	Curl Radius		m	≥4
Attenuation	Zero Dispersion Slope S0		ps/nm²km	≤0.092
	1625nm Attenuation		dB/km	≤0.30
	1383+/-3nm Attenuation		dB/km	≤0.36
	1310nm Attenuation		dB/km	≤0.36
	1550nm Attenuation		dB/km	≤0.22
	Point Discontinuity (1310nm & 1550nm)		dB	≤0.05
	Attenuation at 1285nm ~ 1330nm compared with 1310nm		dB	≤0.03
	Attenuation at 1485nm ~1580nm compared with 1550nm		dB	≤0.03
	Zero Dispersion Wavelength λ0		nm	1300≤λ0≤1324
	1285~1339nm Dispersion		ps/nm/km	≤3.5
	1271~1360nm Dispersion		ps/nm/km	≤5.3
	1550nm Dispersion		ps/nm/km	13.3~18.6
	Nominal MFD Value(1310nm)		μm	8.6-9.5
	MFD Tolerance		μm	±0.4
Bending	Cable Cut-off Wavelength λcc		nm	≤1260
	1550nm Macro-bend Induced Attenuation( 100turns with diameter of 60mm )		dB	≤0.5
	PMD	Q		0.01%
		Maximum Individual Fiber	ps/√km	0.2
		M		20 cables

Our Advantages
Packaging & Shipping
FAQ

1.Are you the real manufacturer?
Yes. We are the real manufacturer in Chuzhou Anhui Porvince, China.

2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.

3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001, ISO14001

6.What is your delivery time?
Usually within 7-10 working days

7.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output is 35000 KM;
FTTH/FTTX/FTTA Cable: annual output is 1200000 KM per year;


8.What is your payment way?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

---
