Product Description
Product Description
Product Description

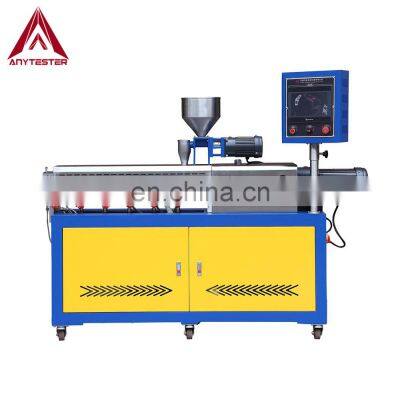

AT395 Lab Twin Screw Extruder (original HY3921) is used for mixing and processing of high molecular polymers such as engineering plastics, modified plastics and color master batches. It is suitable for lab test and quality control, teaching research and small scale production.
The following picture shows a whole system to produce pellets:
Specification
Model
| AT395
|
Screw diameter
| ¢20mm
|
Length-diameter ratio (L/D)
| 1:40
|
Screw rotating direction
| co-rotating parallel
|
Screw speed
| 0~120rpm
|
Screw material
| Special tool steel of 40CrNiMoA chrome molybdenum alloy, treated with nitrogen, adjustment, chrome plating and superfine
grinding.
|
Cylinder
| Hard alloy wear-resisting inner sleeve can be replaced
|
Heating zone
| 5 zones of cast aluminum heater for cylinder 1 zone of heater for feed zone
Heating power:1kw for each heating zone
Covered with stainless steel safety cover
|
Cooling device
| Water circulating cooling system, equips with separate screw
valve flow control device for each zone
|
Drive power
| 2.2kw gear motor
|
Feeder
| 0~50rpm variable frequency speed adjustment screw to feed
materials forcibly
|
Electric control system
| PLC programmable LCD touch screen control, all parameters can be control and display, the extruding process can be dynamic
displayed and monitored. With USB port, easy to
output and printout test data.
|
Pressure control system
| Adopts imported high precision temperature and pressure sensor, with over-pressure protection function, can automatically alarm
and control the machine running or
stopping.
|
Output capacity
| 3 ~ 15kg/h
|
Power supply
| 3phase, AC380V, 50Hz
|
Dimensions
| 1950×500×1500mm
|
Details & Features
★ Different screw types can be selected according to different sample materials.★ Matched with different auxiliaries can extrude pellets, sheet, pipe, etc. (optional configuration).
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Dimensions
| 1160x510x1050mm
|
Weight
| Approx. 80kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
