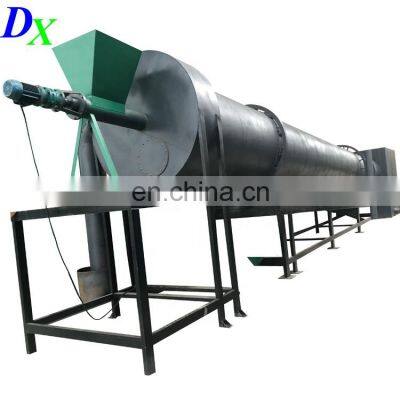

Continuous activated carbon rotary sawdust carbonization furnace kiln
Product Description
Brief introduction of Activated carbon rotary kiln:
Activated carbon rotary kiln is an ideal device to convert biomass powder to get natural charcoal dust under high temperature. The raw material goes through the destructive distillation process in the oxygen-free environment to reach high carbonization degree.
Woring Principle of Activated carbon rotary kiln:
First the biomass material is ignited in the gasifier.
The flue gas produced by burning after spraying, cooling, purification process, it produces the pure combustible gas (carbon monoxide, methane, ethane, etc.).
As the early stage of the carbonization of heat source, through early warming of the carbonizer, to feed the material when the heat reaches the special temperature.
The combustible gas that carbonation process of flue gas by spraying, cooling, purification process into burned secondary. According to this methods of circulation, sufficient to achieve a self-sufficient, then achieve the effect of energy saving.
The flue gas through purification, to reach the environment production and flue gas emissions free. Which is reached to the standards of waste gas emptying.
The temperature of carbonization reach a 600 ℃ to 900 ℃ in the process. According to the characteristics of material, the temperature can be adjusted according to the requirements.
Data of Activated carbon rotary kiln:

Name	Activated carbon rotary kiln
Model	800*860	1000*10600
Capacity	400-600kg/h	800-1000kg/h
Power	21kw	23kw
Voltage	380V 3phase 50HZ
Screw conveyor	219*5000	273*6000
Feeding screw	219*2200	273*2200
Output conveyor	219*5000	219*6000
Gasifier diameter	1500	1700
Material required size	10-50mm	10-30mm
Feeding moisture	15-20%	15%-20%
Material and charcoal rate	3:1	3:1
Required working site	80CM2	80CM2

We can enlarge the machine size depends on your capacity. The biggest diameter is 2m because of shipping container width.
Raw material of Activated carbon rotary kiln:
(1)Almost all of the biomass straw, fruts husk and wood scraps:
Such as Sawdust,Rice Husk,Groundnut Shell,Plants Straw, Tree Bark,Grinded Coconut shell,Bamboo dust,Bagasse,Cotton Stalk,Coffee Husk,Mustard Husk/Stalk,Pine Needles,Sugar Mill Waste,Jute Waste,Coir Pith and other wastes&residues like Castor Shell,Red Gram Stalk,Tobacco Stem,Tea Waste,Sander Dust,Wild Grasses,Shrubs and Sander dust etc.
(2) The Granule size of all aboved raw material should be less than 50 mm;if more than 50mm, configure a crusher.
Final products of Activated carbon rotary kiln:
Related machines of Activated carbon rotary kiln:
After getting charcoal from this biochar retort kiln, you can shape charcoal to different shapes.
It has three models depends on the final shape: Screw extruder machine, ball press machine, and Shisha briquette machine.
The final shape: Stick shape, ball/pillow shape, round/cubic shape.
Stick shape machine
Ball shape machine
Shisha briquette machine
Customers visit us:
Packaging & Shipping
Package and delivery of Activated carbon rotary kiln:
We normally ship it nude(like below picture). It needs 40'GP to load.
Company Information
Gongyi Dongxing Machinery company is specialized in the import, export and wholesale biomass charcoal machinery production line, like: wood crusher, sawdust dryer, briquette machine, and carbonization stove,etc. The final briquette or charcoal are best fuel for barbecue or boiler.
Our aim is to supply the market with top quality charcoal equipment, and provide best service and best price for our customers.
Our Services
Company uphold: honesty, quality first, customer first for the purpose.
Pre services:
1. We will introduce the most suitable machine to clients.
2. Answer clients’ questions patiently until clients think they have solve their problems.
3. Pick clients up to our factory to look over the machine and will improve our machine according to clients’ requirements.
After services:
1. Communicate with clients about details of the machine.
2. Choose the most convenient port to clients to delivery the machine.
3. Company can send technical data for guiding to install debug the
machine. We also can provide 24-hour telephone or message service until solve problems during the making and transporting process in time.
FAQ
1)What is the carbonization rate?
This carbonization rate can reach to 99%.
2)Could you offer complete Wood Charcoal machine production line?
Yes, we will allocate suitable production line according to your special requirement, such as crusher, Gasifier Equipment, Dust-Removal Device, Gascleaner, Auto-feeding Conveyor,Cooling and Discharging Conveyor,Manual automatic dual-use electric control cabinet,etc.
3.)Why it is no pollution ?
Smoking purification system are used for purify the smoking (can not burning) and filter the wood tar. The smoking through the purification system will become water vapor, and it will not pollute the air.
