Liondi 4m -14m Electric Personal Lift Aluminium Alloy Single Mast Hydraulic Lift Platform

US$3,236.00
1-4 Pieces
US$3,000.00
5-9 Pieces
US$2,896.00
10+ Pieces

Basic Info.

Model NO.
EFA-S4000 EFA-S14000
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof
Certification
GS, CE, RoHS, ISO 9001
Maximum Working Height
12m
Maximum Platform Height
10m
Safe Working Load
200kg
Working Platform Size
1400*600*1000
Overall Dimensions
1600*950*1900
Maximum Number of Workers
2
Minimum Ground Clearance
0.06m
Wheelbase
1.23m
Hoist Motor
220V/1.5kw
Lifting Speed
3-5m/Min
Tyre
150mm
Machine Weight
560kg
Mesa Material
50*30*3.0
Transport Package
Cabinet
Specification
1260*850*1700mm
Trademark
LIONDI
Origin
China
Production Capacity
5000sets/Year

Product Description

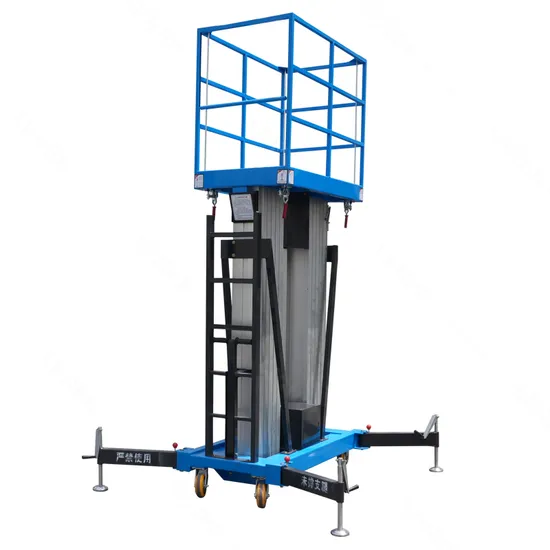

LIONDI 4m -14m Electric Personal Lift aluminium alloy single mast hydraulic lift platform
1.Introduction:
A. Vertical aluminum Lifts are made up of high grade aluminum profile.
B. It is mainly used for the installation and maintenance of the narrow spaces such as star hotels,modern workshops,business hall,hotels,lobby,restaurant,railway stations, exhibition hall and shopping malls.
C.The lifting height ranges from 4m to 18m and lifting capacity varies from 100 to 200kg. The power sources could be 110, 220V, 380V or chargeable battery.
D.The control panels are available both on the lift platforms and the ground.
2.Advantages: A.The Lift is light weight, good flexibility, and suitable for two people to operate.
B. Beautiful structure, light weight.
C.Compact structure, small size transport state, can enter narrow and small area.
D.Safety protection device and imported pump, increases the service life and safety assurance.
3.Safety precautions: A. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
B. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
C. Emergency decline valve: it can go down when you meet an emergency.
4.Power Supply & Applicable place:
A. Electric Powered / AC powered · When the electricity is available at work place, usually for Indoor use · No noise and air pollution B. Battery Powered / DC powered · When the electricity is not available at work place, usually for Outdoor use · No noise and air pollution
