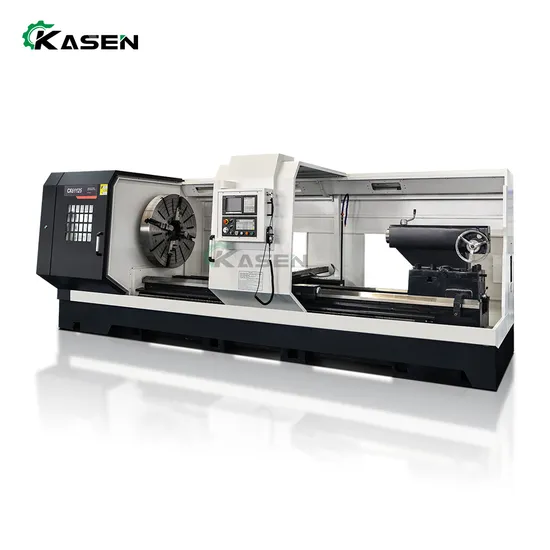

Taiwan′s High-Precision New Mode GSK System Heavy Duty Lathe Machine

Product Description

Taiwan's High-Precision New Mode GSK System Heavy Duty Lathe Machine
Product Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:755mm bed width,4 station electric tool postSpindle hole 130mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,6/8 station electric turret,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters

SPECIFICATIONS	Units	CK61100	CK61125
Swing over bed	mm	1000	1250
Swing over cross slide	mm	610	850
Distance between centers	mm	1500/3000/4000/	1500/3000/4000/
		5000/6000	5000/6000
Guideway width	mm	755	755
Max. load capacity	T	6/10	6/10
Spindle bore	mm	130	130
Spindle bore taper	-	Metric φ140/MT6	Metric φ140/MT6
Spindle nose type	-	A2-15	A2-15
Spindle speed steps	-	VF. 4 steps	VF. 4 steps
Spindle speed range	rpm	4-300	4-300
Chuck	mm	φ1000 4-jaw manual	φ1000 4-jaw manual
Turret/tool post	-	Eletric 4 position	Eletric 4 position
Tool size	mm	40 x 40	40 x 40
X axis travel	mm	520	620
Z axis travel	mm	1350/2850/3850/	1350/2850/3850/
		4850/5850	4850/5850
X axis rapid traverse	mm/min	4000	4000
Z axis rapid traverse	mm/min	6000	6000
Tailstock quill diameter	mm	φ160	φ160
Tailstock quill taper	-	MT6	MT6
Tailstock quill travel	mm	300	300
Main spindle motor	kw	22	22
Coolant pump motor	kw	0.125	0.125
Weight for 1500	kg	10000	11000
Weight for 3000	kg	11500	12500
Weight for 4000	kg	12500	13500
Weight for 5000	kg	13500	14500
Weight for 6000	kg	14500	15500
Dimension for 1500	mm	5000x2100x2100	5000x2250x2300
Dimension for 3000	mm	6500x2100x2100	6500x2250x2300
Dimension for 4000	mm	7500x2100x2100	7500x2250x2300
Dimension for 5000	mm	8500x2100x2100	8500x2250x2300
Dimension for 6000	mm	9500x2100x2100	9500x2250x2300

Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
