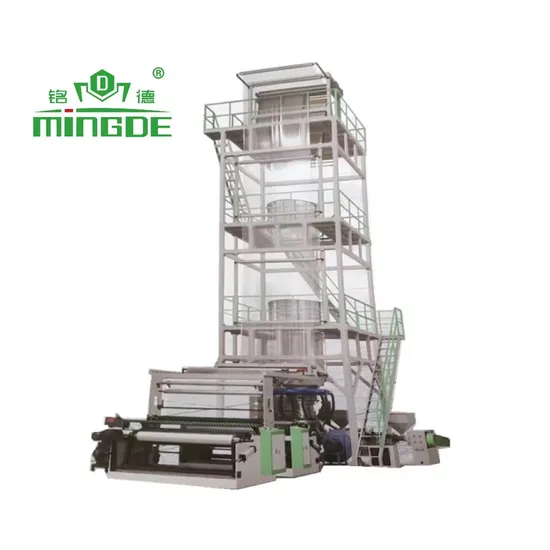

Best Quality Three Layer Film Blowing Machine

Product Description

Product Description
This machine set is to satisfy the customers requirements of high quality, high output film blowing equipment. It adopts the extruder with force feeding function, precision type ceramic heaters, precision type double vents air ring, horizontal type rotary traction system, IBC inner cooling system, fully automatic surface friction type double cut double winders, computer concentrate control system ect. Advanced technique and equipments. Compare with kindred equipment, it has the advantages such as more compact structure, higher output, better produce quality, less energy consume, easier operation. It can be widely used into various kind of high transparence packing film manufacture, and crate the considerable economic benefit for you.

Model	MD-3L50	MD-3L55	MD-3L65
Suitable Material	LDPE LLDPE EVA HDPE
Max Film Width(mm)	1200	1500	2000
Film Thickness(mm)	LD:0.015-0.15
Max Extrusion Output LD	140kg/hr	200kg/hr	280kg/hr
Extrusion unit
Gear Box	146/173/146	173/200/173	200×3
Screw Diameter(mm)	φ50/55/50	φ55/65/55	φ65/65/65
Screw L/D Ratio	28:1
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	370W×2×3	370W×2×3	370×3×3
Thermo Control (zone)	3×3	3×3	4×3
Driving Motor (kw)	15/22/15	22/30/22	30/30/30
Extrusion Die
Die Size (mm)	LD:φ250/300	LD:φ350/400	LD:φ500
Rotary Die Head (mm)	360°Continue Rotary 360°
Screen Changer	Manual Mechanics Screen Changer
Thermo Control (zone)	3	4	4
Air Ring	1 PCS
Cooling Blower (kw)	5.5	7.5	11
Take-UP Unit
Roller Width (mm)	φ165×1300	φ165×1600	φ190×2100
Take-UP Motor (kw)	1.5	1.5	2.2
Take-UP Speed(M/min)	5-60	5-60	5-60
Winding Unit
Type OF Winder	Surface Friction Double Winder
Roller Width (mm)	1300	1600	2100
Winding Motor	16N.M	1.5kw	1.5kw
Winding Speed(M/min)	5-60	5-60	5-60
Voltage	380V, 50HZ, 3PHASE
Cover Dimensions (m)	6.8×2.6×6.5	7.5×3.2×7.5	9×4.2×9
OPTIONAL EQUIPMENT
1)	AUTO LOADER×3
2)	Chiller
3)	CORONA
4)	FULL AUTOMATIC WINDER
5)	EMBOSSING ROLLER

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Our Advantages
After Sales Service
Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.
FAQ
1.Trade company or manufacture?
we are a manufacture of plastic machinery such as: film blowing machine, printing machine ,bag making machine and recycling machine.
2.How to visit our factory?
Some lines you can choose. First, you can come to guangzhou air port, then by air to wenzhou air port, call us we can go whenzhou air port to pick up you.
Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train Ruian station then we go air port or train station to pick up you.
3.What about the warranty?
All our machine have one year warranty. if the machine parts broken because the quality problem, we can provide the spares for you by free.
4.What about the traning?
We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operation.
we also can send engineer to your factory ,teach your workers how to run the machine. but you need pay all the fees including: round tickets , food and living.
5.About the machine shipping?
Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.
6.About the machine packing?
Our machine normal use the plastic packing. if you need wooden case packing and require fumigation, before order you need tell us so we arrange for you.

---
