Product Description
Product Description

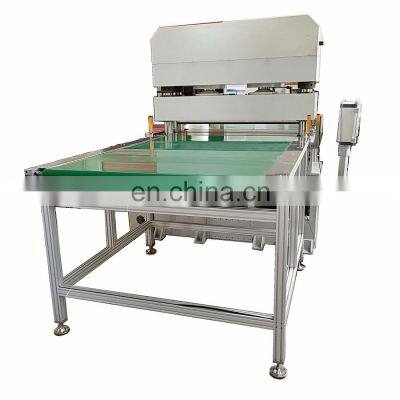

hydraulic die cutting machineThis hydraulic die cutting machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:Automotive interiorSheet material industry suppliesFloor matsAbrasives, abrasive paperLeather and leathergoods – shoe uppers, wallets, purses, beltsLampshades – fabric or plastic, with or without cut outsClothing – components for hats, ties, collars, shoulder padsCork gaskets and matsFilters for machinery, breathing apparatus and the medical industryFoam and sponge – gaskets, packaging, consumer productsFootwear components – shoes, insoles, insole socks, uppers, strapsPlastics – PVC binders, lampshades, stationery products, gifts, novelties, gasketsRubber – gaskets, seals, washers Product DescriptionUsage & Features1. Automatic Cutting Machine is applicable to continuous and large-batch cutting of nonmetal materials such as fabric leather, carpet, rubber, film, foam and cloth etc. in large-scale factories by die cutter.2. Use PLC computer touch screen to control procedures, servo motor driver conveying system, insure feeding accurate range, with stable running speed.3. Can work in fully automatic, semi-automatic, manual mode;4. The main machine is controlled by four-column guiding, double-crank balancing, four-column blocking fine adjustment mechanism and hydraulic control system, which can guarantee the speed and accuracy of die cutting machine. 5. The central automatic lubrication system can guarantee the machine precision and enhance machine durability6. The input and output of materials are conveyed on the conveying belt, and the die cutting of materials is also automatically completed on the conveying belt.7. The unwinding system can be designed based on customer's requirement. Automatic feeding flat bed table supports materials in sheet, and roll unwinding system supports materials in roll;8. The device with cutting board and fixed mold to make the operation more convenient.9. Products of special specifications can be customized.How to choose a cutting machine:Material: Nonmetal material such as leather, fabric, foam, EVA, rubber gasket, etc.Cutting area: it depends on the material size.Cutting force: it depends on the blade perimeter of the die cutter.Feeding system: it depends on the material. Main Technical Data(Customizable) ModelDPMQMaximum cutting force60T100TCutting area1250*800mm1250/1600*1200mmMotor power5.5KW11KWTension Distance25-135mm25-135mmMachine weight7500kg10500kg
>>
