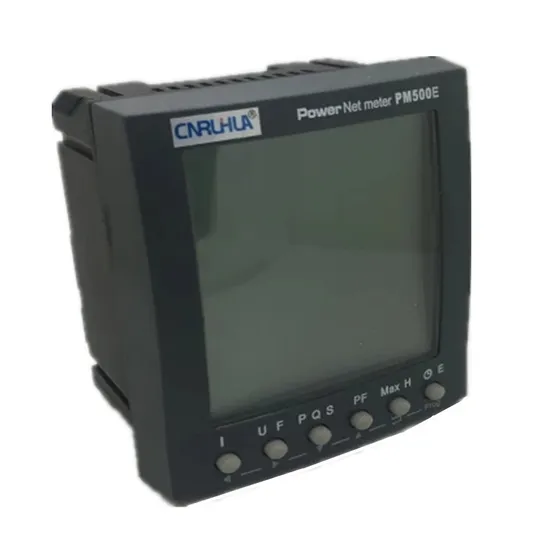

New Design Power Meter with Large Monitor (PM500E)

Product Description

1.96x96
2. Digital intellignet panel meter
3. Green back light
4. RS485, modbus RTU
Multi-function Power Analyzer PM500E, with its RS485 communication module ME2-485, measures all the electric quantities of single- and three- phase electric network:
Phase current, average phase current
Phase(line) voltage, average phase(line) voltage
Frequency
Phase active power, total active power
Phase reactive power, total reactive power
Phase real power, total real power
Phase power factor, average power factor
Phase current, total active power, total reactive power, total real power maximum at certain duration
Phase current, voltage harmonics at certain duration
Import/export active(reactive) energy
Power meter - PM500Eseries
96x96mm PowerLogic power-monitoring unit for HV and LV networks
The Power Logic PM500M Power Meter provides all measurement capabilities required to monitor an electrical installation in a single 96 x 96 mm unit. Ideal for metering and monitoring applications, it can be integrated in a Power Logic system to increase the reliability of your installation while cutting costs.
Connection: Three phase 4 wires or 3 phase 3 wires, or 2 phase 3 wires.
Signal phae 2 wires
Voltage:
Range: 30-600V wire voltage
20-400 V phase voltage
PT change: 1-10000
45-65Hz
Communication:
RS485, modbus RTU, address 1-247, Baud rate: 1200-19200
Modular and upgradeable
Compact (96 x 96 x 62 mm)
Large back lit display with integrated bar charts
Power and current demand plus THD included in basic version E
Energy Class 1 as defined by IEC 61036 (4 quadrants)
Panel instrumentation.
Sub-billing / cost allocation.
Remote monitoring of an electrical installation.
Monitoring of harmonics (THD).
Make sure you don't miss anything
The PowerLogic PowerMeter PM500 help you:
Reduce energy costs
Improve power quality
Improve continuity of service for optimal management of your electrical installation and a better productivity.
2000 Pairs Sells per Month
5 pairs MOQ
48-72 hours delivery after received money

External:	96 mm×96 mm×61mm
Dimension for the installing hold	92 mm×92 mm
Module	22 mm×49 mm×65mm
Display	LCD
Phase/wire connection	Single-phase network;3P4W;3P3W; 1P3W(balanced & unbalanced loads)
Net Weight:	360g
Communication Interface
