Basic Info.
Machining Process
Hydraulic
Certification
ISO9001: 2000, CE
Maximum Vertical Reach
38m
Maximum Horizontal Reach
34m
Maximum Depth Reach
24.9m
Pumping Frequency
35min-1
Outriggers Span (Front*Rear*Side)
6190*8345*7045mm
Upper Structure Mass
15260kg
Transport Package
Comply with Export Packaging Requirements
Specification
9845*2500*3596mm
Production Capacity
1000pieces/Month
Packaging & Delivery
Package Size
984.50cm * 250.00cm * 359.60cm
Package Gross Weight
15260.000kg
Product Description
Product Description

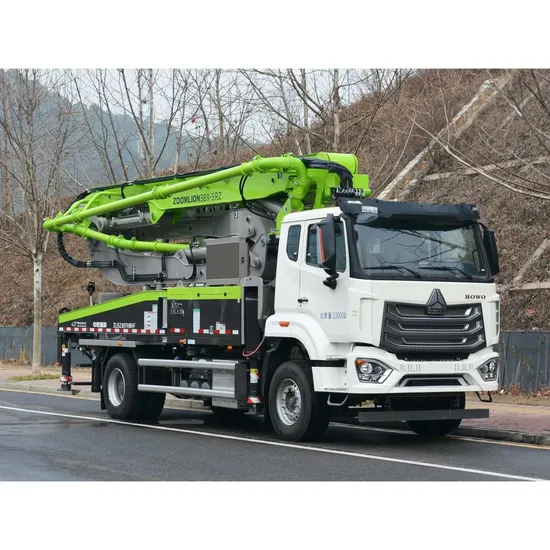

38m 3-axles Truck Mounted Concrete Pump
• Compact in design, 38m pump mounted on a 3-axle truck.• Efficient pump unit, ideal for long time use.• Agile placing boom with 5 arms with unfolding height 8.52m only, which gives a wide work range.• One side lateral support enables to work in narrow sites.• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.• Various configurations and high quality components.• Damping technology boom.• Boom stabilization control.• Multilingual man-machine interface system.• PWM+CAN dual communication mode remote control.
Product Parameters
Pump Unit
| Max. Theor. output
| m3/h
| 140/90
|
Max. Theor. concrete output Pressure
| MPa
| 7/11
|
Rated working pressure
| MPa
| 35
|
Pumping frequency
| min-1
| 27/17
|
Hopper capacity
| L
| 550
|
Filling height
| mm
| 1540
|
Hydraulic system type
|
| opened loop
|
Distribution valve
|
| S valve
|
Oil cylinder dia.×stroke
| mm
| φ130×2100
|
Concrete cylinder dia.×stroke
| mm
| φ230×2100
|
Hydraulic oil cooling
|
| Wind cooling
|
Recommended concrete slump
| cm
| 12~23
|
Max. aggregate dimension
| mm
| 40
|
Boom Section
| Structure type
|
| 38X-5RZ
|
Placing depth
| m
| 38
|
Max. horizontal distance
| m
| 34
|
Max. placing depth
| m
| 24.9
|
Slewing angle
|
| ±270°
|
Boom number
|
| 5
|
The length of boom section
| mm
| 8890/8100/8105/5405/3500
|
Sections folding angle
|
| 90°/180°/180°/250°/90°
|
Pipe diameter
| mm
| 125
|
End hose length
| mm
| 3000
|
Min. height of opening placing boom
| mm
| 9610
|
Outriggers span (front×rear×side)
| mm
| 6190×8345×7045
|
Upper Structure
| Upper Structure Mass
| kg
| 15260
|
Dimensions(L×W×H)
| mm
| 9845×2500×3596
|
