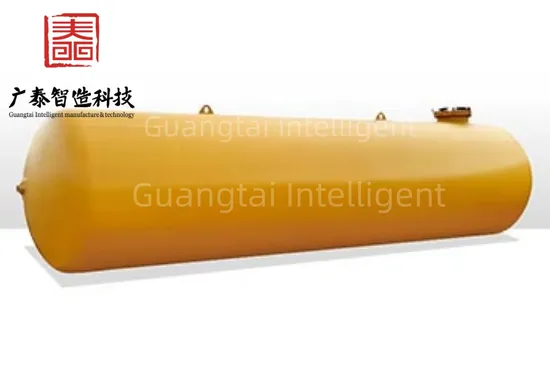

10000L 20000L 30000L 50000L L Carbon Steel Horizontal Double Wall Fuel Storage Tank for Gasoline

Product Description

Introducing our Aboveground Single Wall Diesel Gasoline Fuel Storage Tank, expertly designed for chemical applications. This masterful creation is engineered to offer superior storage solutions for various fuels and chemicals, ensuring safety and reliability at every step.
Product Description
Explore the excellence with our Stainless/Carbon Steel Storage Fuel Tank, meticulously crafted for storing oil, diesel, and a multitude of chemical liquids. These durable tanks are constructed from high-quality carbon steel, available in both vertical and horizontal configurations to meet a wide range of needs. Choose from cylindrical, square, or spherical shapes that provide unmatched versatility. The horizontal tanks are precision-engineered with end covers and circular or oval tubular walls, complete with saddles. Ideal for production facilities or gas stations, these tanks embody durability and innovation at their finest.Skid Stainless Steel Tank Our tanks boast a variety of volume options, generally below 100 cubic meters. Be it round, oval, or uniquely shaped, each tank is designed to cater to the diverse demands of our clients, ensuring maximum satisfaction.
Technical Details
1. Pressure: Atmospheric; Temperature Range: Experience unrivaled performance from -19 ºC to an impressive 200 ºC.
Medium: Ideally suited for storing sulfuric acid and various petroleum chemical raw materials, our tanks redefine efficiency and safety.
2. Capacity: Our offerings span a versatile range from 2m³ to 100 m³, accommodating your unique storage needs.
3.Stainless Steel Fuel Tank Our tanks are equipped with advanced wall ray protection, anti-static design, and comprehensive fire control measures, all meticulously tailored to specific engineering requirements. This ensures unmatched safety and compliance with stringent sanitation standards.
4. Anti-Corrosive Measures:
Our anti-corrosion strategy is meticulously tailored based on the medium stored within. Additionally, the external wall corrosion protection is expertly adapted to the soil conditions enveloping the tank, ensuring longevity and reliability.
5. Type: Available in both horizontal and vertical designs, our tanks cater to diverse customer preferences with precision.
6. Layer: Opt between single or double-layered tanks, skillfully designed to meet customer specifications and maximize utility.
7. Capacity Options for Fiberglass Fuel Tanks: Expertly crafted to accommodate capacities ranging from 1,000 to 100,000 liters, our tanks are specifically tailored to client requirements, delivering exceptional capacity solutions.
Technical Parameter
1. Tank Volume: Ranging from 2-100cbm, with customization options available to align with client specifications.
2. Tank material: Choice of carbon steel, stainless steel, or aluminium, each offering unique benefits and superior performance.
3. Tank shape: Choose from round, square round, or ellipse designs tailored to fit your specific needs.
4. Tank accessories: Includes valve, piping, flange, each providing seamless integration and functionality.
Option: Enhance your tank with a drip tray, sight gauge, dipping options, taps, vent pipes, fixed couplings & screw fittings, an overfill prevention device, and a delivery pipe with pump, each designed to optimize performance.
Basic Parameters and Size for Horizontal Tank

Capacity (cbm)	Tank shape	Diameter (mm)	Length (mm)	Tank wall thickness(mm)
5	Cylindrical	1600	2770	5
10	Cylindrical	1800	4420	5
15	Cylindrical	2200	4440	6
20	Cylindrical	2200	5500	6
25	Cylindrical	2200	6820	6
30	Cylindrical	2200	8140	6
40	Cylindrical	2200	10820	6

The Accessory Line-Up
Main Accessories forStainless Steel Fuel Tank with Double Wall:
· Access Manhole: Ø 600 mm, customizable to meet purchaser's specifications, complete with gasket and a robust, secure bolted cover.
· Loading Access Port: Features a lockable quick cap and an overfill protection valve for uninterrupted operations and safety.
· Vent: Comes equipped with a flame arrestor net, ensuring peak safety standards.
· Suction Line: Includes a foot valve and strainer, ensuring efficient and smooth fuel extraction.
· Dip Stick: Made of high-quality aluminum, calibrated for precise manual measurement of fuel levels.
· Level Gauges: Available in a variety of mechanical and electronic options, providing accurate and reliable measurement.
Our comprehensive range of pumps and fuel meters is designed to address a vast array of requirements and applications. Opt for a sophisticated fuel management system to achieve unparalleled control over fuelling operations and tank levels, ensuring efficiency and effectiveness.
An Array of Advantages
Discover the remarkable Stainless Steel Fuel Tank with its robust double-wall construction, designed to offer a multitude of unparalleled benefits, as detailed below: 1. Unmatched Security:
Crafted from 6mm thick stainless steel, the inner layer delivers exceptional strength, far surpassing ordinary tanks that use 5mm material. This critical upgrade dramatically enhances the tank's integrity and long-lasting durability.
The outer layer, expertly constructed from reinforced fiberglass with a thickness of 2.5mm or more, provides outstanding compressive resistance, alongside formidable resilience to corrosion and electrical erosion.
Innovative technology creates a precise 0.1mm gap between the inner and outer layers, effectively neutralizing potential risks at their source. A state-of-the-art senior leak detector ensures round-the-clock real-time monitoring, proactively safeguarding against leakage threats.
2. Economic Practicality:
The meticulously engineered double-walled fuel tank is built to last, with a service life extending 5 to 10 times longer than ordinary tanks, guaranteeing at least 30 years of secure use. Its installation process is simplified, slashing construction time and costs remarkably.With maintenance needs reduced to just one-tenth of standard oil tanks, the fiberglass fuel tank significantly trims ongoing upkeep expenses, ensuring economic efficiency.
3. Commitment to Environmental Protection:
Our pioneering double-layer design, featuring a minimal 0.1mm gap, ensures any potential leaks are contained within the outer FRP layer, preventing soil and water contamination. Meanwhile, the outer FRP is meticulously safeguarded against electrolytic corrosion from groundwater and saltwater.
Introducing Our Company:
Guangtai Intelligent Manufacture & Technology (Jiangsu) Co., Ltd proudly delivers comprehensive turn-key energy equipment solutions. From supplying energy equipment and building stations to navigating government permissions and offering fuel dispenser system services, we address all client challenges in energy operations. Our success is reflected in over 500 installations across China, with applications spanning military, petrochemical, aeronautics, automotive, and transportation sectors.
Founded in 2017, Guangtai Intelligent Manufacture & Technology (Jiangsu) Co., Ltd is strategically located at No.200, Dingdian, Zhennan Village, Dantu District, Zhenjiang City, Jiangsu Province, covering 40,000 sq. meters. We boast a professional R&D team, state-of-the-art hardware facilities, and numerous national patents and test reports.
Our Certifications:
Our company is renowned for its strong technical capabilities, pioneering equipment, and advanced technology, supported by impeccable detection methods. We have cultivated a rigorous quality assurance framework, securing UL certification, ISO9001 quality management, ISO14001 environmental management, and OHSAS18001 occupational health and safety certifications.

Why We Are the Right Choice:
1. Our specialized design team excels in creating customized steel tanks tailored to specific client requirements. We invite your drawings or samples for bespoke oil tank fabrication.
2. With over 20 years of esteemed experience in the steel tank industry,we commit to delivering superior quality and reliability in every product. Our team of highly skilled production experts, coupled with cutting-edge equipment, consistently produces top-tier products that exceed industry benchmarks.
3. Our extensive global after-sales service network provides comprehensive technical support, ensuring unparalleled service and satisfaction with prompt efficiency, regardless of your location.
4. Our products enjoy a formidable international market presence, with successful exports to vibrant regions including Singapore, India, Australia, Japan, Nigeria, Angola, Djibouti, Ecuador, and South Africa.

---
