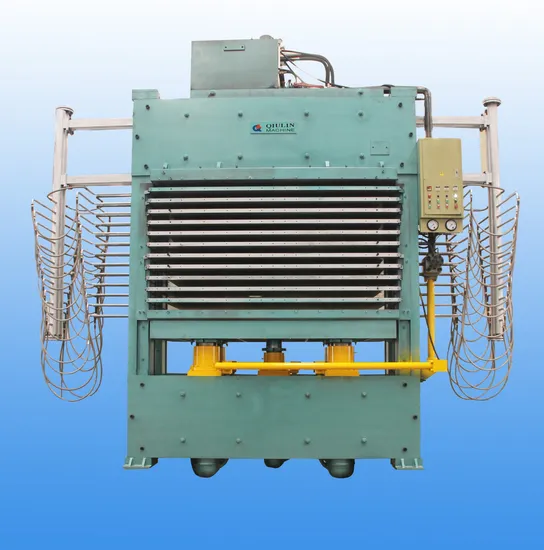

Qiulin 600t 4X8FT 12 Layers Plywood Hot Press Woodworking Machine

Product Description

	BY214x8/60(12)Z3C
Total pressure	6000KN
Working layers	12
Max.pre.int. of valid working width	16.2kgf/cm2
Platen & size	13-2700x1370x42mm
Opening	80mm
Cylinder No. & diameter	1-Φ190mm 4-Φ240mm
Heating way	The user prepare the heating source
Platen open way	Automatically,threetimes release pressure
Installation power	15.75kW
Closing speed	65mm/s
Overall size	5490x1660x5220mm
Gross weight	37800kg

Advantage:
1.It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.
2.As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on.
3.Cylinder:It is worked through excellent CNC precision machine tool.
4.It uses high quality oil seals to make sure good sealing.
1.Delivery and Package:
-We will take care of your machinery packages well.
-Our workers will make sure your machine clean before package.
-We will add stretch film for the whole machine and spare parts for delicate protection.
-We will make export standard strong wooden box case package as your request for the knocked down parts of machines.
2.Guarantee:
The main machine is guarantee for 12 months and the electric elements is guaranteed for 6 months.Within guarantee under normal using and maintenance.If the machine has something problem because of our quality fault you will get spare part for free. After the guarantee, you will get the cost price for accessories.You will also get technical support and service all the time.
3.Technical Support:
-Technical support by Phone,Email,Wechat 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.
4.After sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you cost training until you can use machine freely.And if there is still any question, please contact us by Email, Phone, and we chat online service at any time.

---
