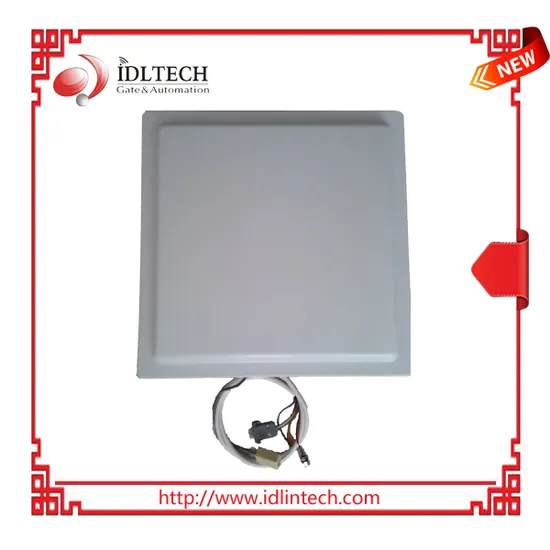

12m Integrated Long Range UHF RFID Reader for Non-Stop Parking System

Product Description

Up to 12m reading; Compatible 6C and 6B agreement; Support multiple language SDK.
Function Features
Reliable reading range can reach up to 12m
Compatible 6C and 6B agreement
Support multiple language SDK package, system connecting is convenient
Can customize RJ45 interface
Integrative industrial design, water-proof, sun-defending, convenient installation
Technical Parameters
Self-intellectual property;
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
902~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
8dbi/12dbi antenna optional with effect distance up to 8m/;
Support auto-running, interactive and trigger-activating work mode;
Low power dissipation with single +9 DC power supply;
Support RS232, RS485, Wiegand interface;
* Effective distance depends on antenna, tag and environment.
Application
Vehicle intelligent management: Car parking lot, speed way non-stop toll, customs using, weighing automatically, etc.
Production flew-line intelligent management: Intelligent sorting of products on flew-line, etc.
Warehouse management: Cargoes in and out automatic recording, etc.
Logistics management: Container management, tray management, asset tracking, etc.
People management: In and out management at school gate, in and out management at factory gate, etc.
Wiring Definition

Item	Comment
Red	+9V
Black	GND
Yellow	Wiegand DATA0
Blue	Wiegand DATA1
Purple	RS485 R+
Orange	RS485 R-
Brown	GND
White	RS232 RXD
Green	RS232 TXD
Grey	Trigger input(TTL level)

* Optional model named as UHFReader18TCP with TCP/IP interface is also available.

---
