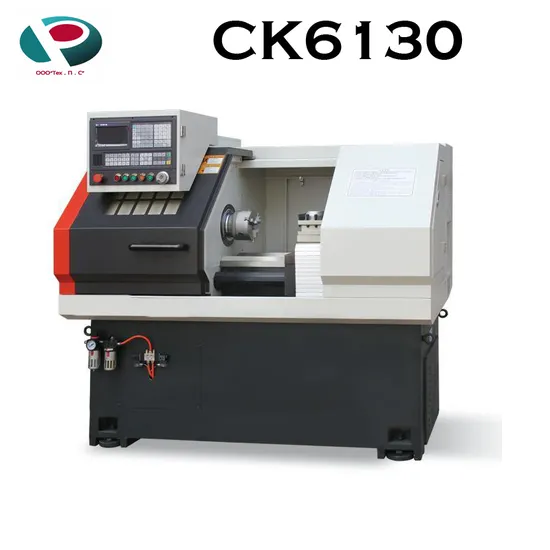

Jepps Ck6130 Flat Bed CNC Lathe Machine

Product Description

CNC Lathe use:
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface,end face, such as processing, and also can process the single and multiple threads in metric, inch and otherstandards.
Product main technical specification:

	project		unit	CK6130
	Max. swing dia. over bed(mm)		mm	Φ300
	Rail span in X direction		mm	160
	Rail span in Z direction		mm	240
	Max. Swing dia. over slide		mm	Φ100
	Top distance		mm	350
	Maximum turning length		mm	230
	Center high	Distance from bed	mm	150
		from the ground	mm	1065
	Diameterspindle through hole		mm	Φ48
	Bar diameter		mm	Φ45
	Equipped with hollow chuck tie rod through hole		mm	Φ40
	Spindle end type			A2-5
	Chuck		mm	6'
	Spindle taper hole taper		No	chuck
	Spindle maximum speed		rpm	2500
	Number of tool rows			3
	CNC system			Syntek 6TA
	Lead screw model	X axis	mm	FDC2506-P3
		Zaxis	mm	FDC3210-P3
	X/Z rapid movement speed		m/min	6/10
	X-direction travel		mm	280
	Minimum setting unit		mm	0.001
	Main engine power		KW	5
	Total power		KW	10
	Weight		Kg	1700
	Dimensions (L× W × H)		mm	2200×1160×1620

CNC Lathe Features:
FAQ: 1.Q: Which trade term I can choose? A: You can choose FOB,FCA 2.Q: How can I get quotation from you? A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday. 3.Q: how can I make the payment? A: You can pay by T/T . You can also pay to my company business bank account. 4.Q:What is your delivery time ? A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. We want to know: Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
