High-Efficiency Semi-Conductor Bar Cutting Machine for Solar Battery Manufacturing

Product Description

Equipment use: Specially engineered to enhance cutting efficiency for our esteemed clients, this model features a substantial roller length of 690mm. The table dimensions are 170/145mm*690mm*160mm*2 versions, making it ideal for cutting products with thicknesses ranging from 0.3mm to 65mm.

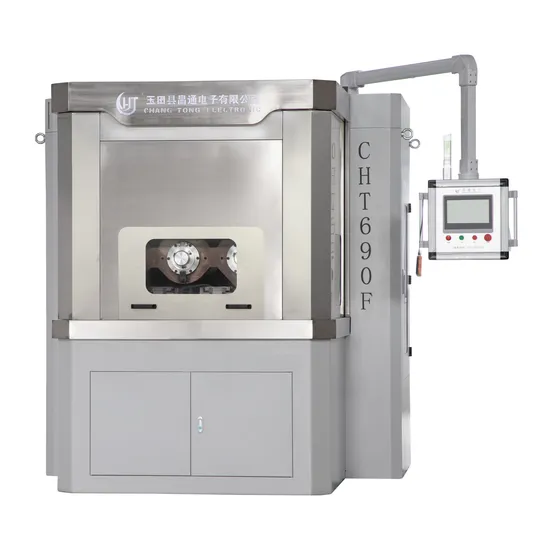

CHTXQ-690F double plate multi-wire cutting machine product features
1. Each of the four motors independently powers the four rollers, transforming them into drive shafts. This innovative feature significantly reduces steel line wear on the rollers, thus extending roller lifespan. With precision mounting holes crafted by a processing center, we ensure impeccable spindle installation and coaxial alignment.
2. The machine can be equipped with an LED display for a more intuitive view of cutting data, enhancing user experience.
3. Designed for convenience, materials are cut from the bottom upwards. This allows effortless loading and unloading processes.
4. Available in both high-speed and standard models, the high-speed version boasts superior line speed and increased cutting efficiency. It allows for thinner diamond line cuts on the same material.
5. Featuring transverse movement, the table's mobility accommodates versatile applications, such as tile cutting and single-line cutting functions.
6. The expansive loading area, measuring 170/145mm*690mm*160mm*2, dramatically boosts cutting efficiency.
7. With a spindle accuracy of ≤0.01mm, the patented dust protection structure (Patent No. ZL201320681902.7) ensures stable operation and easy disassembly.
8. User-friendly design featuring an automatic lifting shield and a fully expansive workbench for seamless loading, unloading, and roller operations.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This sophisticated double-station multi-wire cutting machine utilizes diamond wire to meticulously process products, handling two plate materials simultaneously. With a generous roller length of 690mm, it offers a maximum cutting area of 220mm*690mm*160mm*2. The rotary tool holder function facilitates cutting blade thicknesses from 0.5mm to 65mm, supporting both single-line and multi-line cutting for hard, brittle materials in batch processing.
Engineered as a multi-line cutting machine, this model employs diamond line technology. The roller extends to 570mm with a maximum cutting area of 220mm*570mm*160mm. Perfect for processing product thicknesses from 0.3mm to 65mm, it features a rotary tool holder, enabling it to slice open sheets while processing hard, brittle materials.
Designed as a compact multi-line cutting machine utilizing diamond line technology, this model offers single and double station variants. It is ideal for small batch product processing with straightforward specification replacements. The cutting sheet thickness ranges from 0.5mm to 30mm, and it supports both single-line and multi-line cutting for small batch processing of hard and brittle materials.

>Stable Wire Web Control
Utilizing a cone-positioned structure, the rollers and wire spools deliver exceptional accuracy and rigidity, effectively minimizing wire web shaking.
>Optimized Pulley System
The innovative 8-pulley design significantly diminishes diamond wire torsion, tension fluctuations, and breakage rates, ensuring superior performance.
>Easy Wire Winding
Thanks to the standard universal spool (PV600 reinforced I-wheel), the wire pay-off wheel eliminates the need for rewinding, streamlining operations.
>Safety Guarantee
For enhanced safety, the main operation door features an electric raise and lower mechanism, complete with a safety device.
>Wire break memory system.
>Easy Operation
The cutting room's 3-sided open design facilitates easier operation and maintenance, ensuring efficient workflow.

---
