US$2,100.00-3,800.00
|
1 Set
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
After-sales Service
Provide
Application Wood
Hardwood Softwood
Max Cutting Diameter
900mm
Cutting Length
3000 or Customized
Rail Length
4000 or Customized
Engine
Electric/Gasoline/Diesel
Transport Package
LCL/FCL
Specification
2200*1200*1670*1*500kg
Production Capacity
2-5m/Min
Product Description
Product Detail Portable Horizontal Band Sawmill
SW26 sawmill,smooth finishing,easy to move around,suitable to cut wood for the farm owners and DIY woodworking .The lightweight
head and adjustable bed provide a variaty of travel and storage options. Horizontal Log Band Saw,Log Cutting Band Saw,Round Log Multi Rip Saw Machine,sawmill

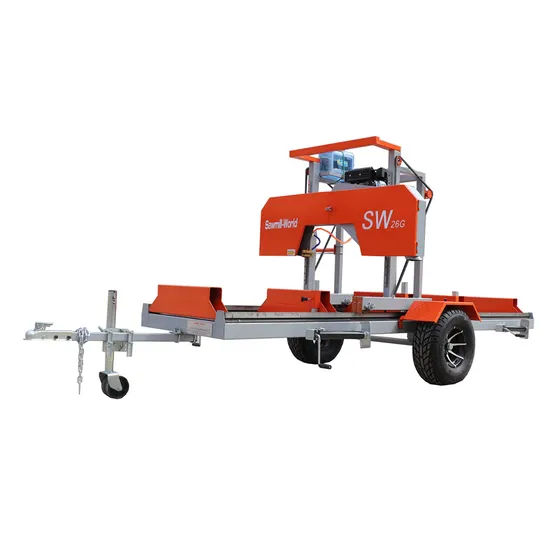

SW26 Diesel/Gasoline/Electric Portable Band Sawmill
Model
| SW26G
| SW26E
| SW26D
|
Power
| 9HP Gasoline Engine
| 7.5KW Electric Motor
| 8HP Diesel Engine
|
Max Sawing Wood Diameter
| 660mm(26'')
| 660mm(26'')
| 660mm(26'')
|
Cutting Wood Length
| 3000mm(118'') It can be extended
| 3000mm(118'') It can be extended
| 3000mm(118'') It can be extended
|
Max. Cutting Wood Thickness
| 240mm(9.4'')
| 240mm(9.4'')
| 240mm(9.4'')
|
Saw Wheel Diameter
| 480mm(18.9'')
| 480mm(18.9'')
| 480mm(18.9'')
|
Blade Size
| 3810 x 35x 0.9mm
| 3810 x 35x 0.9mm
| 3810 x 35x 0.9mm
|
Machine Length
| 4000mm(157'')
| 4000mm(157'')
| 4000mm(157'')
|
Weight
| 500KG
| 500KG
| 500KG
|
Packing Dimension
| 2200mm*1000mm*1600mm* 1 Package
|
SW31 Diesel/Gasoline/Electric Portable Band Sawmill
SW31 Model
| SW31G
| SW31E
|
Power
| Gasoline Engine 15 PH (LONCIN, Manual start)
| Electric Motor 7.5KW
|
Max Sawing Wood Diameter
| 780mm(31")
|
Standard Sawing Wood Length
| 3000mm(118")
|
Saw Wheel Diameter
| 480mm(18.9")
|
Blade size
| 4070 x 35x 0.9 mm
|
Machine Length
| 4000mm(157")
|
SW36 Diesel/Gasoline/Electric Portable Band Sawmill
Model
| SW36G
| SW36E
| SW36D
|
Power
| 15HP Gasoline Engine (LONCIN, Manual start)
| 11KW Electric Motor
| 13HP Diesel Engine (Electric Start )
|
Max Sawing Wood Diameter
| 900mm(36")
| 900mm(36")
| 900mm(36")
|
Standard Sawing Wood Length
| 4000mm(157'')
| 4000mm(157'')
| 4000mm(157'')
|
Saw Wheel Diameter
| 580mm(22.8")
| 580mm(22.8")
| 580mm(22.8")
|
Machine Length
| 5000mm(169'')
| 5000mm(169'')
| 5000mm(169'')
|
Blade Size
| 4100 x 35x 0.9 mm
| 4100 x 35x 0.9 mm
| 4100 x 35x 0.9 mm
|
Weight
| 700KG
| 700KG
| 700KG
|
Size
| 2800*1500*1800mm
|
Detailed Images
Options for SW26/SW36
SW26
| SW36
|
Extend Tracks 1 meter
| Extend Tracks 1 meter
|
Tires and Legs
| Tires and Legs
|
Extend Track with Tires 1meter
| Extend Track with Tires 1meter
|
Log Loading Sloping+Winch
| Change to 22HP Electric Start LONCIN Gasoline Engine
|
Change to 15HP Manual Start LONCIN Gasoline Engine
| Change to 13HP Manual Start HONDA Gasoline Engine
|
Change to 13HP Manual Start HONDA Gasoline Engine
| Change to 14HPManual Start KOHLER Gaosline Engine
|
Change to 14HPManual Start KOHLER Gaosline Engine
| Carbide Blade:4100*35*0.9mm
|
Change to 13HP Electric Start Diesel Engine
| Bi-metal Blade: 4100*34*1.1mm
|
Carbide Blade: 3810*35*0.9mm
| MR100 Blade Sharpener(Bi-metal stone: 90USD)
|
Bi-metal Blade :3810*34*1.1mm
| Can Hook(Log Rotator)
|
MR100 Blade Sharpener(Bi-metal stone: 90USD)
| Change Voltage
|
Can Hook(Log Rotator)
| Steel Frame Packing
|
Company Profile
Shandong Shuanhuan Machinery Ltd is one of the world's leading manufacturers of high quality sawmills. Established in 1988, the company has always been committed to the production and R&D of sawmills and wood pallet machinery and sincerely serves 12,000 enterprises. Our products have been exported to 61 countries in the world. The company's registered brand "SAWMILL-WORLD" currently covers a large number of product lines including wood pallet making line, pallet dismantling line, log sawing equipment, solid wood furniture processing equipment, and wood shredding equipment. With the standardization of quality management and service, it has won the favor of many customers.
>>
