Heavy Duty Double Column CNC Machining Center/CNC Gantry Milling XH5038 XH6038 XH8038

Product Description

Product Description

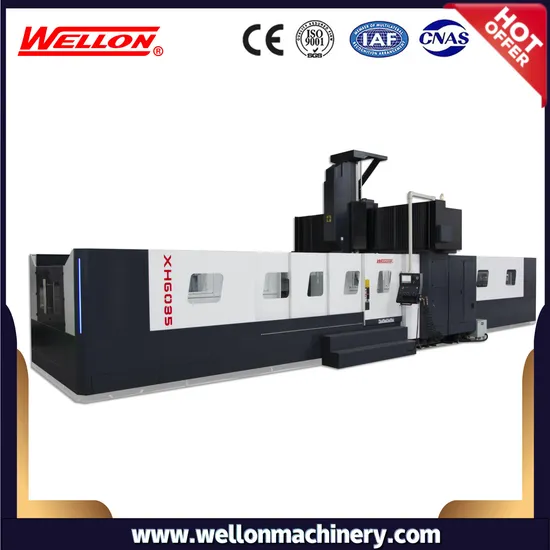

Double Column Machining Center XH5038 XH6038 XH8038

Detailed Photos
Product Parameters

Technical Parameters:

Item	Unit	XH5038	XH6038	XH8038
X axis travel	mm	5000	6000	8000
Y axis travel	mm	4260	4260	4260
Z axis travel	mm	1250	1250	1250
Spindle nose to worktable	mm	250-1500	250-1500	250-1500
Distance between two column	mm	3800	3800	3800
Leadscrew diameter	mm	100/80/63	100/80/63	100/80/63
Linear guideway width	mm	55/55/Rectangle	55/55/Rectangle	55/55/Rectangle
Worktable Length	mm	5000	6000	8000
Worktable width	mm	3000	3000	3000
T slot qty-width*distance	mm	15-28*200	15-28*200	15-28*200
Max loading capacity	Ton	17	20	24
Spindle speed	rpm	6000/belt	6000/belt	6000/belt
Spindle motor power	kw	30	30	30
Fast moving speed	m/min	10/10/10	10/10/10	10/10/10
Cutting speed	mm/min	1-6000	1-6000	1-6000
Spindle taper		BT50	BT50	BT50
X/Y/Z axsis motor torque	Nm	60/40/40	60/40/40	60/40/40
Tool Magazine Capacity	pcs	Disc/24	Disc/24	Disc/24
Positioning accuracy	mm	0.025/0.020/0.018	0.025/0.020/0.018	0.025/0.020/0.018
Repeat accuracy	mm	0.015/0.012/0.012	0.015/0.012/0.012	0.015/0.012/0.012
Length	mm	12440	14440	19240
Width	mm	6770	7170	7170
Height	mm	5770	5770	5770
Weight	kg	50000	55000	65000

Standard accessories:

Mitsubishi M80A controller

Spindle speed 6000rpm belt type

24 tools disc type

Screw type chip conveyor & chip bucket *2

Chain type chip conveyor & chip bucket *1

Nitrogen balance cylinder

Air conditioner in cabinet

Air gun+Water gun

Automatic lubricating system

2-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from Taiwan Hiwin

Levelling pad,nut and bolts

Tools and tool box

Optional accessories:

Spindle oil cooler

CTS 20bar

CTS 30bar

Renishaw tool probe TS27R

Renishaw workpiece measurement device OMP60

Gear head

Manual angle head

X axis gear box

Y axis gear box

Chain type ATC 32 tools

Chain type ATC 40 tools

4TH Axis rotary table 255mm+tail stock+hydraulic station

Company information
Packaging & Shipping

FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Double Column
Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
