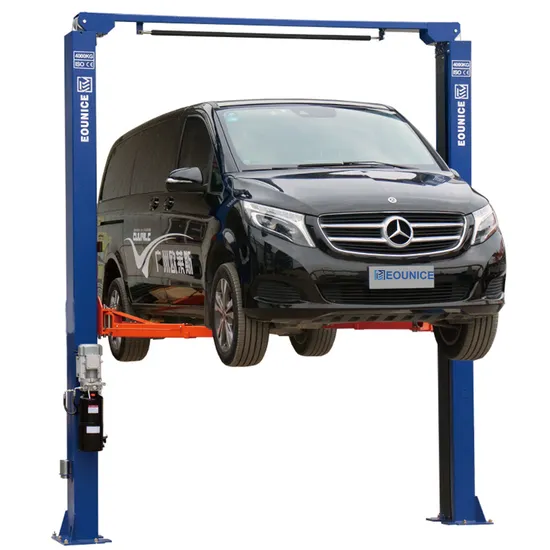

Heavy-Duty Car Lift with 4200kg Capacity and Safety Mechanism

Product Description

OVERALL DIMENSION
Product Description TECHNICAL DATA:

Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	Total Height	Width Between Columns	Total Width	Gross Weight	Motor Power
ON-7214	4,000kgs (9,000LBS)	≤55S	1920mm (75 9/16")	95mm (3 3 /4")	3835mm (151")	2850mm (112 1/4")	3410mm (134 1/4")	673kgs (1,484LBS)	2.2KW (3HP)
ON-7214/4.5	4,500kgs (10,000LBS)	≤55S	1920mm (75 9/16")	95mm (3 3 /4")	3835mm (151")	2850mm (112 1/4")	3410mm (134 1/4")	703kgs (1,550LBS)	2.2KW (3HP)

PRODUCT INTRODUCTION: CE approval. With an impressive lifting capacity of 4,000Kg (9,000LBS.), our lift is engineered for heavy-duty performance. Designed with a user-friendly manual lock release system, it operates on a safe 24V low voltage. Each column is equipped with a durable chain drive cylinder, featuring anti-surge valves for enhanced safety and efficiency. Comes standard with four two-stage lifting arms for versatile accessibility and convenience. Equipped with screw-up rubber pads, offering a minimum height of 95mm (3 3/4") to ensure stability and adaptability. Includes a standard curtain inside the column and a foot guard for additional protection. Standard with a high limit switch to prevent over-extensions and ensure safety. Boasting a lifting height of 1920mm (75 9/16"), it is perfectly suited for a diverse range of operators. Fitted with an overhead safety protection device for maximum operational security. Features automatic arm restraints to secure vehicles during lifting operations. Finished with a professional powder coating for durability and a sleek appearance. FEATURES Our ultra-thin adapter, starting at a minimal ground height of 95mm (3 3/4"), is ideal for low-chassis vehicles, ensuring seamless maintenance and lifting tasks. Reaching an impressive maximum height of 3835mm (151"), with an effective height of 3700mm (145 11/16"), it caters perfectly to vehicles with high roofs. The column's inner pulley is strategically placed on the oil cylinder's side, maintaining a secure 10mm (3/8") distance from the shaft end, effectively preventing pulley dislodgement. Main structural components are precision-welded by robots, ensuring exceptional consistency, robust strength, and aesthetically pleasing seams. Our structural parts feature an advanced powder coating, utilizing imported spraying equipment and high-temperature curing for superior adhesion, vibrant color, and a striking finish. OUR FACTORY: Warranty term: Our products come with a one-year warranty on the equipment structure, guaranteeing freedom from material and craftsmanship defects.

This warranty extends to components like motors, gearboxes, power units, hydraulic cylinders, and assembly parts such as turnplates and slip plates,

as well as cables, chains, valves, switches, etc. All are covered for one year against manufacturing defects under normal usage.
Our Services
1. Offering comprehensive OEM and ODM services, tailored specifically to your unique requirements.
2. Delivering bespoke customization services to suit your precise specifications.
3. Enjoy a One-Year Quality Warranty service, which includes complimentary spare parts within this period, excluding shipping costs.
Note: Shipping fees are to be covered by the customer.
4. Our dedicated professional team is committed to providing lifelong support and service.
FAQ Here are insightful answers to some frequently asked questions from our valued buyers.

Q: Are you a Trade Company or a Factory?
EOUNICE: Rest assured, we are a manufacturer with our own trade company.

Q: What is the delivery timeframe for production?
EOUNICE: Generally, production is delivered within 15 days after receiving a 30% deposit or L/C, dependent on prior sales and based on one 20FT or 40HQ Container.
This timeframe is calculated based on one 20FT or 40HQ Container capacity.

Q: What are the standard colors? Can I request a special color?
EOUNICE: Our vibrant standard colors include Blue, Red, and Yellow, designed to capture attention and elevate your workspace aesthetics.
We take pride in offering customization options to suit your unique preferences. Yes, we can manufacture machines in special colors as per client requests, allowing your Heavy-Duty Car Lift to align perfectly with your brand's identity.

Q: Can special sizes be ordered?
EOUNICE: Absolutely! Yes, you can.
We are committed to meeting your specific needs, and the size of our product can be tailored accordingly. Whether you require a compact fit or a unique dimension, our team ensures your Heavy-Duty Car Lift integrates seamlessly with your space. We appreciate your understanding and flexibility during the customization process.

---
