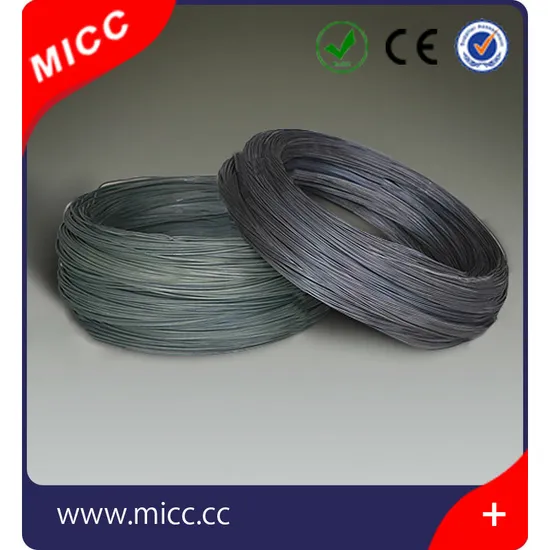

Our resistance wire(heating wire) used at operating temperatures up to 1200. Its chemical composition gives good oxidation resistance especially under conditions of frequent switching or wide temperature fluctuations.
Applications include heating elements in both domestic and industrial appliances and in control resistors.
Purposes: Ni-Cr materials are widely used in industrial electric furnaces, household appliances and far-infrared devices because of their high temperature strength and strong plasticity.
| Alloy Nomenclature/Performance | | NiCr8.20 | NiCr70 30 | NiCr60 15 | NiCr35 20 | NiCr30 20 |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| | Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 |
| | Fe | ≤ 1.0 | ≤ 1.0 | Rest | Rest | Rest |
| Max. continuous service temp. of element | 1200 | 1250 | 1150 | 1100 | 1100 |
| Resistivity at 20oC (μ Ω @ m) | 1.09 | 1.18 | 1.12 | 1 | 1.04 |
| Density (g/cm 3 ) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 |
| Thermal conductivity(KJ/m@ h@ oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 |
| Coefficient of lines expansion(α × 10-6/oC) | 18 | 17 | 17 | 19 | 19 |
| Melting point (approx. )( oC) | 1400 | 1380 | 1390 | 1390 | 1390 |
| Elongation at rupture (%) | > 20 | > 20 | > 20 | > 20 | > 20 |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite |
| Magnetic properties | nonmagnetic | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic |
