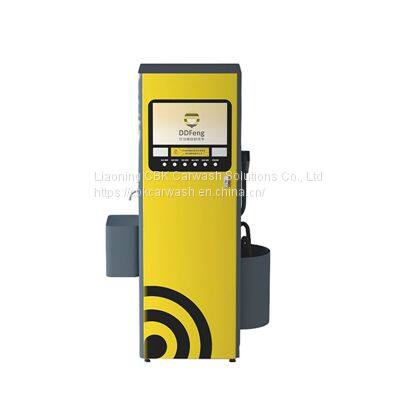

Cbk Self-developed motherboard new design high-performance all-in-one self-service car washing machine

Product Details

Product Description

Product Description
Products Description

self service car wash equipment
Dimension of Equipment	L600W500H1500mm
Fuction	1.Clear Water 2.Foam 3.Warm Water Clean Car 4.Clean Collection 5.Settlement
Mainboard	BH201916 Intelligent Grid Board	System	Connected to Independent Platforms/APIS
Motor Power	Level 4 2.2kW (single fretting + intelligent start and stop)	Foam	Add Raw Liquid Machine Automatic Proportioning
Equipment Material	1.2 Thick Galvanized Plate/Electrostatic Spraying	Water Gun	Pure Copper High Pressure Kit (Anti-Winding)
Control Button	Waterproof Self-replicating Button	Time Dispaly	Digital Display Screen
Water Tank Capacity	10L+20L	Foam Proportioner	Automatic Foam Proportioning Metering Pump
Working Voltage	220V (16A)	High Presuress Water Tube	10M * Double Stainless Steel High Pressure Pipe
Dust Collector	1.5KW/20L/7M Vacuum Tubes	Hand washing faucet	All copper faucet
Water Yield	9-12L/Min	back-stage management	(PC + mobile) Dual management background
Water Pressure	80-100Kg	Water and electricity connection mode	Water+220V
Moving Method	Directional Anchor	IntelliSense	Device Offline Notification

Details Images
Exhibition
Recommend Products
Similar Items
Cbk Fully Automatic car wash For Sale Self Service Robot Washing System Carwash Touchless Car Wash Machine Bay$30,200.00 / set1 set
CBK 208 car wash station machine trade eayerproof car wash machine payment pure copper car washing machine$24,800.00 / piece1 piece
Cbk 108 Touchless Carwash Machines Systems Fully Automatic Customized Car Wash Detailing Equipment For Luxury Car$22,100.00 / piece1 piece
FAQ
1. What's the layout dimensions required for CBK Wash installation ? ( Length×width×height )
CBK108:6800mm*3650mm*3000mm
CBK208: 6800mm*3800mm*3100mm
CBK308:8000mm*3800mm*3300mm
2. What is your biggest car wash size?
Our biggest car wash size is:5600mm*2600mm*2000mm
3. How long does your car washing machine take to clean a car?
Depending on the steps set in the car wash process, it takes 3-5 minutes to wash a car
