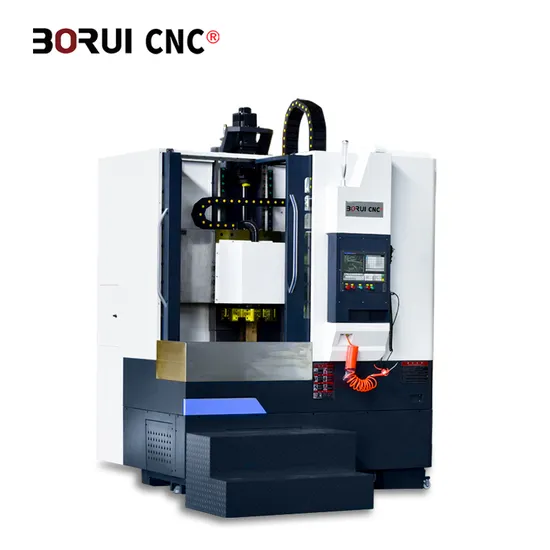

C5060 Automatic Heavy Duty Metal CNC Vertical Lathe Machine Vertical

Product Description

C5060 Automatic Heavy Duty Metal CNC Vertical Lathe Machine Vertical
Product Description
Product description::
C5060(L) Vertical CNC lathe is an excellent product designed and produced by our company for many years on the basis of absorbing the advanced technology of similar machine tools at home and abroad. This series of machine tools is economical and efficient, and is the first choice for processing complex disk parts in automobile, industry and other kinds of machinery industries. This series of machine tools can process all kinds of short shaft and disc parts, can turn all kinds of thread, arc, and rotary body inside and outside surface, end face, groove. It is suitable for parts with large batch, high machining precision and high dimensional consistency. This series of machine tools is widely used in automobile industry at home and abroad, and is a kind of high quality, high precision, low cost and high efficiency machine tool.
Compared with the previous similar machine tools, it has the following advantages:
1. important parameters of machine tools, such as the maximum machining diameter of machine tools, two-axis fast moving speed and so on, are close to or larger than similar machine tools abroad.
2. machine tool has compact structure, smaller area, reasonable layout of each functional component, convenient operation and maintenance. 3. machine tool price is excellent and cheap, quite cost-effective. Suitable for small and medium-sized enterprises single or batch procurement, effectively reduce enterprise procurement and operating costs.
Product main technical parameters:

Project		C5060(L)	C7080(L)	C9010(L)
maximum rotary diameter		Φ600 mm	Φ800mm	Φ1000mm
maximum cutting length		500mm	700mm	700mm
maximum cutting diameter		500mm	700mm	900mm
Spindle Form and Code		A2-8	A2-8/11	A2-11
spindle speed		80-2000 rpm	80-2000 rpm	80-1200 rpm
Spindle Speed Series		Stepless	Stepless	Stepless
main motor power		15kw	15/18.5kw	18.5/22kw
Main motor torque		191 nm	191/236 nm	236/280 nm
X axis servo motor		2.4 Kw-15Nm	2.4 Kw-15Nm	2.8 Kw-18Nm
Z axis servo motor		2.4 Kw-15Nm	2.4 Kw-15Nm	2.8 Kw-18Nm
Type of tool holder	Cutter	Cutter rack	Cutter rack	Cutter rack
	Electric tool holder	4/6	4/6	4/6
	Hydraulic tool holder	8/12	8/12	8/12
	Power tool holder	8/12	8/12	8/12
X axis travel		-50~+350 mm	-50~+400 mm	-50~+500 mm
Z axis travel mm		700	700	700
Electrical capacity		16 KVA	18 KVA	22 KVA
machine weight		6.5 T	7.5 T	11.5 T
size		2100×1800×3200 mm	2100×1900×3400 mm	2200×2000×3900 mm

Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )

---
