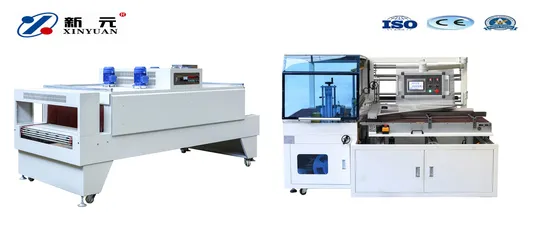

Big Products Shrink Package Machine

Product Description

Xinyuan packaging machinery co., ltd. was founded in 2001, located in Wenzhou ,China, with 10000 square meter plant area, Wenzhou head office, Guangzhou branch office. we are Leading manufacturer of automatic sealing machine, shrinkable machine, sealing machine, vacuum machine and other series of packaging machinery and related equipment; Products are widely used in food, medicine, daily necessities, cosmetics, health products, stationery, hardware, auto parts and other fields of packaging; Products are exported to Europe, the United States, the middle east and other countries and regions. we are warm welcome you join in to build a brilliant future.
Description: Beautiful machine, Stable quality, Safety,energy saving, patented products, domestic initiative, application to the POF PVC PP film thermal shrink packaging effect is perfect. Features: 1.Appearance and knot design in accordance with national standards, the fuselage uses fingerprint resistant sheet production after spray treatment. 2.Control panel using programming system, 12V DC input , button switch , digital display. 3. Transmission using 24v DC Motor speed control using variable frequency technology 0-9 file adjustment. 4.The conveyor belt can be used wire mesh belt, chain roller, Teflon mesh belt three. 5.Heating using 600W 220V far infrared quartz heating tube. 6.Temperature control using high precision intelligent temperature control system . up and down temperature independent regulation. 7.Hot air circulation using 220V 60W 2200 to the long axis motor with wind wheel. 8.The bracket can be disassembled , and the height of the bracket can be adjusted.

L SEALER	FQL 450 A	SHRINK TUNNEL	BSN 4020C
VOLTAGE	220/50-60HZ	VOLTAGE	220V 50-60HZ
POWER	1.35KW	POWER	9KW
AIR PRESSURE:	5-7	TUNNEL SIZE(L*W*H)	1200*400x200mm
CAPACITY	15-30bags/min	PRODUCT SIZE(W*H)	350x150mm
PRODUCT MAX SIZE L+H(H<150mm)	<500mm	CONVEYOR SPEED	0-15m/min
PRODUCT MAX SIZE W+H(H<150mm)	< 400mm	MATERIAL	CHAIN, TEFLON
SEALING SIZE	550*450mm	CONVEYING LOAD	20kg max
MACHINE SIZE (L*W*H)	1650*800*1450mm	MACHINE SIZE (L*W*H)	1600x560x660mm
WEIGHT	300KG	WEIGHT	80kg
APPLICATION:	POF.PVC

---
