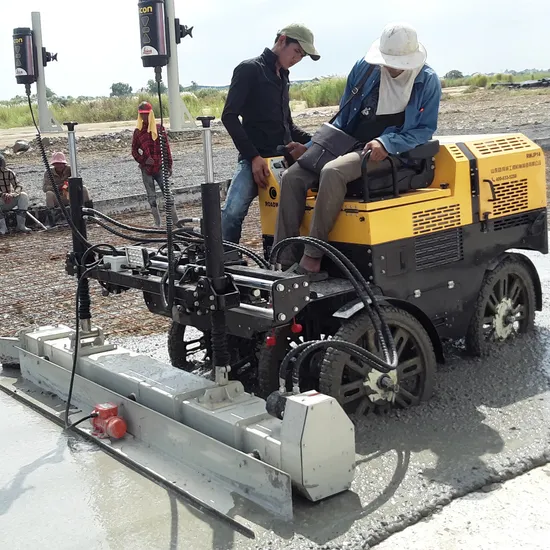

ride on concrete laser leveling screed machine for sale RWJP14
Model
| RWJP14
|
Engine
|
|
Model
| HONDA GX630 Electric start
|
Type
| Gasoline engine, air cooled, 4 stroke, OHV, double cylinder
|
Power
| 20hp/3600rpm
|
Oil tank volume
| 40L
|
Lubricant L
| 1.9L
|
Fuel consumption
| 313g/kWh
|
Running device
|
|
Drive
| 4 hydraulic drive motor
|
Wheel
| Solid puncture-proof tyre
|
Running speed
| 0-35m/min
|
Screed system
|
|
Type
| Swing Type
|
Width
| 2500mm
|
Paving type
| With auger
|
Auger force
| Hydraulic motor
|
Exciting force
| 500N
|
Vibration frequency
| 50Hz
|
Screed plate height
| 350mm
|
Laser control system
|
|
Control type
| Microcomputer laser scan
|
Control effect
| Flat, slope or double slope(3D)
|
Operation mode
|
|
Chair position
| forward type
|
Forward and reverse
| Hand grip control, stepless speed walking
|
Steering
| Hydraulic control
|
Cleaning system
|
|
Power
| Hydraulic motor
|
Theoretical flow
| 20L/min
|
Rated power
| 7Mpa
|
Input port max water pressure
| 0.5Mpa
|
Hydraulic oil volume
| 50L
|
Size and weight
|
|
Outside size
| 2717x2760x2380mm
|
Weight
| 1200kg
|
