Wool Pre-Spinning Lab Wool Gilling Machine Mini-Size a Gill Box Pin Drafter

Product Description

Product Description
The machine is used to comb different types of wool tops or mix them with different fibers such as wool and chemical fibers. It is frequently used in the long fiber spinning system, such as worsted spinning system. The shorter fibers are further removed and the longer fibers are aligned as parallel as possible. It also helps to remove any impurities left during the carding process.
After 2-4 passes of mixing, various fibers of different colors can be matched and mixed evenly to meet the requirements of the product. It can be used for various colors of wool needle combs, as well as small sample mixing experiments and production of wool synthetic fibers and nylon.

Product Parameters

Feeding mode	Platform
Chain plate transmission method	double threaded screw, double headed thug
Screw lead	working 27
Number of needle plates	68
Maximum number of hits	800
Draft type	single zone cross needle plate draft
Feeding sliver number	2-8pieces
Draft ratio	2.5-15
Maximum feeding amount	120g/m
Front roller speed	10-50 meters/minute
Production type	platform or strip
Feeding type	elevated or platform
Control mode	Touch screen & PLC Servo motor driving

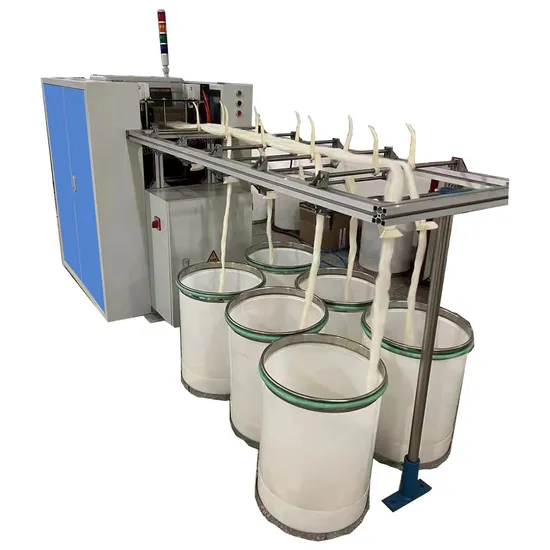

Detailed Photos
The lab Wool Gilling Machine is one of the most important equipment in the worsted fiber processing system.
The main task of the needle-comb process is to improve the evenness of the middle and long segments of sliver by means of multi-merging and drawing .By combing the comb needle, the fiber's straightness, parallelism and separateness are further improved slightly, and hook bending and crimp are eliminated.
The fiber is blended evenly and the yarn quality is stabilized by repetition, combination and drafting. Remove some of small impurities and short hairs .
In the long fiber spinning system, because the roller carding output sliver in the fiber parallelism and the evenness of the strip do not meet the spinning requirements, some of the "hook"bending phenomenon cannot be spun directly, especially in the worsted spinning system. If directly to the comber to receive a careful comb. It is easy to cause fiber damage in the comb as well as the rate of making. In order to increase the combing process, lab Wool Gilling Machine machine is frequently used in the former spinning process. The main effect is to improve the evenness of the sliver.
Whereas a drawframe is traditionally used in the straightening and parallelizing of cotton and other short fibers, a gill box pin drafter is used for processing wool, alpaca, and other long staple fibers.

After Sales Service

Good service and quantity .
1. We supply one year warranty and 12 hours service per day
2. Our skilled engineer can go to your company for installation service
3. Our Color Gilling Machine adopts top quality material including imported parts, most of the critical component are adopting first class brand .
4. Our company passed ISO and have strict quality control before delivery goods
5. We can customized and also supply OEM service
6. We also can supply different language user's manual .
The user manual of Laboratory Color Gilling Machine can help you operate our machine easily.
7. we supply operation video if customer need it .

Customer Show

Our Advantages
Based on the Digital Textile Technology Research Institute of Qingdao University, we have developed the whole sample spinning production line and lab weaving line. It is used for teaching research and new product development in textile colleges and scientific research institutions.
Company Profile
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered.
FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

---
