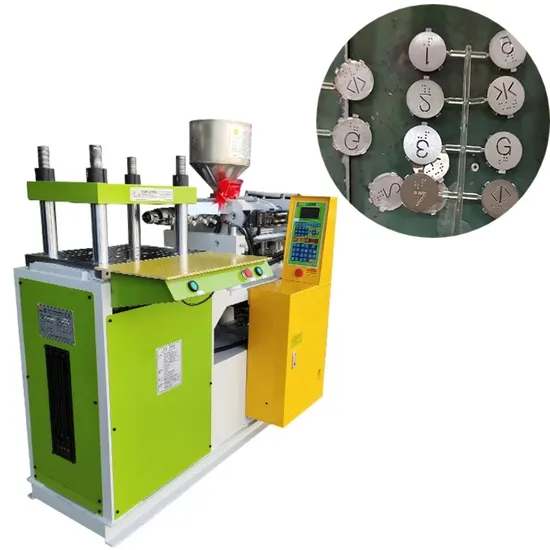

Plastic Toggle Type Vertical Injection Molding Machine for hang tags seal
| Brand Name | TianCheng | | Style | VERTICAL |
| Condition | New | | Style | TC-400-P |
| Screw Diameter (MM) | 28--32 | | Model NO. | 140 |
| Maximum injection Pressure (Kg/cm2) | 1447-1108 | | Max.Hydraulic Pressure(Kg/cm3) | 45 |
| Theoretical Shot Volume (Cm3) | 73-96 | | Pump Output (L/min) | 138 |
| Maximum Shot Weight (G/oz) | 65/2.2--85/3.0 | | Oil Tank Capacity (L) | 600-800 |
| Injection Rate (Cm3/sec) | 58-76 | | Cooling Water Consumption(L/H) | 5.5 |
| Screw Speed (R/Min) | 0--180 | | Electric Power (KW) | 2.4 |
| Screw Rate (MM) | 120 | | Total capacitance (KW) | 7.9 |
| Nozzle Retraction Stroke (MM) | 220 | | Total Wattage (KW) | 1.6*1.05*2.45 |
| Clamping Force (Ton) | 45 | | Machine Specification(M) | 1500 |
| Opening Force (Ton) | 7 | | Weight of Machine (KG) | PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP |
| Platen Size (MM) | 600*430 | | Plastic Processed | Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support |
| Distance Between Tie-Bere (MM) | 450*250 | | After-sales Service Provided
| Video technical support, Online support, Spare parts, Field maintenance and repair service |
| minimum Mold Thickness (MM) | 160/220 | | After Warranty Service
| 1 year |
| Opening Stroke (MM) | 200 | | Warranty | Manufacturing Plant, Construction works , Energy & Mining, Other |
| Max-Distance opening mold (MM) | 360/420 | | Applicable Industries | |
| Max.Mold Size | 400*350 | | | |
| Ejector Force (Ton) | 1.3 | | | |
| Ejector Stoke (MM) | 35 | | | |
| FAQ |
| Q1 | Do you have reference project? |
| A1 | We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information,you can go to visit their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine |
| Q2 | Do you provide customized service |
| A2 | We can design the machines according your requirements(material ,power,filling type,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years. |
| Q3 | What's your guarantee or the warranty of the quality if we buy your machines? |
| A3 | We offer you high quality machines with 1 year guarantee and supply life-long technical support. |
| Q4 | How long time for installation? |
| A4 | According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days. |
