Product Description
Product Description

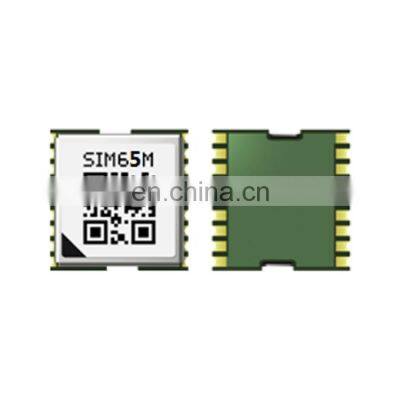

DescriptionSIM65M● SIM65M is a high performance and reliable GNSS module. It is a GNSS module integrated with GPS &GLONASS &BDS & Galileo & QZSS system in a LCC type with AIROHA’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.● SIM65M provides simultaneous GPS, GLONASS ,BDS, Galileo and QZSS open service L1 reception capability. With 47 GNSS receiver channels, SIM65M can acquire and track any mix of multiple satellite signals. Combining advanced AGPS called EASY™ (Embedded Assist System) with proven AlwaysLocate™ technology, SIM65M achieves the highest performance and fully meets the industrial standard.Product Advantages● Support EASYTM self-generated orbit prediction● Support EPOTM orbit prediction● Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)● Support Jamming Removing● Low-noise amplifier has been integratedProduct DetailsMechanical data•Dimensions 10.1*9.7*2.5mm•Weight 0.5gFeaturesSupport GPS/GLONASS/BDS/Galileo/QZSS(L1 Band Receiver 1575.42MHz)Support EASYTM self-generated orbit predictionSupport EPOTM orbit predictionSupport SBAS ranging(WAAS, EGNOS, GAGAN, MSAS)Support Jamming RemovingLow-noise amplifier has been integratedCertifications• CE(PLAN)• RoHS/REACH(PLAN)Performance dataReceiver type 47channels GNSS receiverMax. update rate 10HzSensitivity1 Tracking -166dBmReacquisition -158dBmCold starts -147dBmTime-To-First Fix2Cold starts 30sWarm start 25sHot starts 1sEPO Assist 15sAccuracyAutomatic Position3 2MSpeed4 0.1m/sOperation temperature5 -40℃~+85 ℃InterfacesSerial interfaces UARTDigital I/O Pulse-per-second (PPS)EINT0 inputProtocols NMEARTCMElectrical dataPower supply 2.8V~4.3VBackup power 2.3V~4.6VPower consumption2,6Acquisition 18mATracking 18mASleep current 210uABackup 20uAAntenna type Active and passiveAntenna power External or internal VCC_RFWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
