BS5163 Cast Iron Resilient Nrs Gate Valve

US$29.00 5 Pieces (MOQ)

Basic Info.

Model NO.

Z41X

Type

Direct-acting

Material

Cast Iron

Connection Form

Flange

Pressure

Low Pressure

Actuator

Manual

Seal Surface

Wedge Gate Valve

Thread Position of Valve Rod

Inside Gate Valve

Usage

Flow Control

Standard

DIN

Application

Industrial Usage, Water Industrial Usage, Household Usage

Item

Bs5163 Gate Valve

Connection

Flange

Body

Ductile Iron

Stem

S.S 420

Seat

EPDM

Bolts

C.S or S.S

Size

2" - 24"

Operator

Hand Wheel or Stem Cap

Surface

Epoxy Resin Coated

Transport Package

Plywood Case

Specification

DN40 - 600

Trademark

WALTER, OEM

Origin

Jiangsu

HS Code

84818040

Product Description

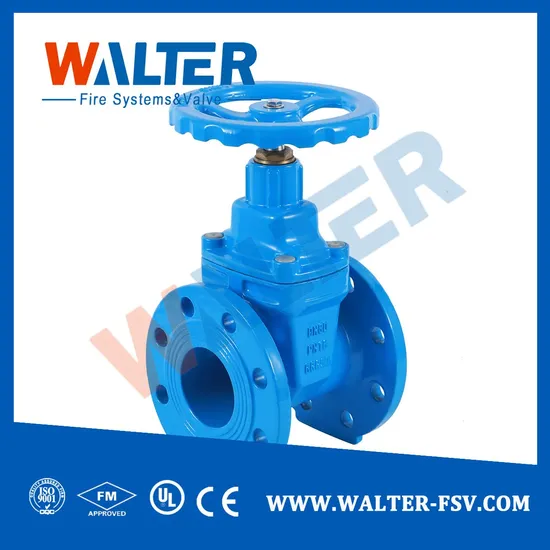

SUZHOU WALTER -FSV COMPANY SUPPLY KINDS OF RESILIENT SEATED GATE VALVES FOR WATER TREATMENT SYSTEM, FIRE-FIGHTING SYSTEM. WITH FULL BORE DESIGN, LOW HEAD LOSS, CLOCKWISE CLOSING DIRECTION OR NON-CLOCKWISE CLOSING DIRECTION IS OPTIONAL.
1) Design Standard : BS5163, DIN3352, AWWA C509/515 or Custom made
2) Testing Standard: EN1226-2, DIN 3230, ISO5208
3) Pressure Testing : Body : 1.5 X PN; Seal: 1.1 X PN
4) Size Range: DN 40 - 600 .
5) Body & Bonnet: GGG 50 ( EN-GJS 500 -7)
6) Wedge: GGG 50 + EPDM
7) Stem: SS420
8) Bolts: Stainless Steel or Carbon Steel
9) Surface: Epoxy Resin Coated inside & outside, Min. 250μm
Beside Gate Valves, We also could supply OEM service for butterfly valve, check valve,
